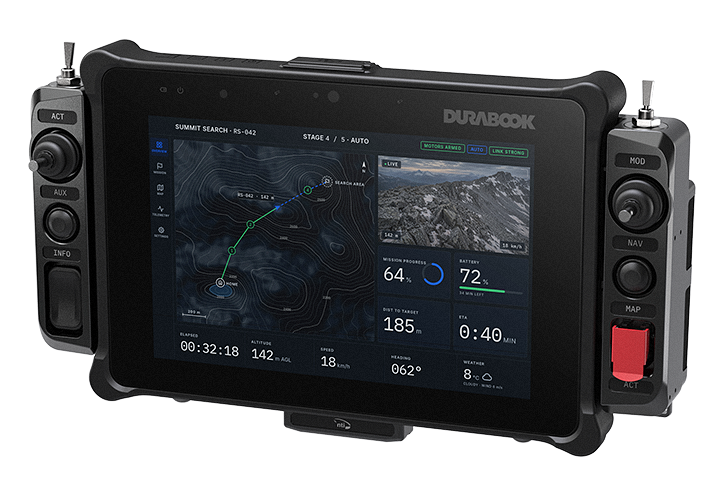

Dragonfly ND-8 Flex
Download Datasheet
Built for Mobility and Fast Turnaround
Feature Highlights

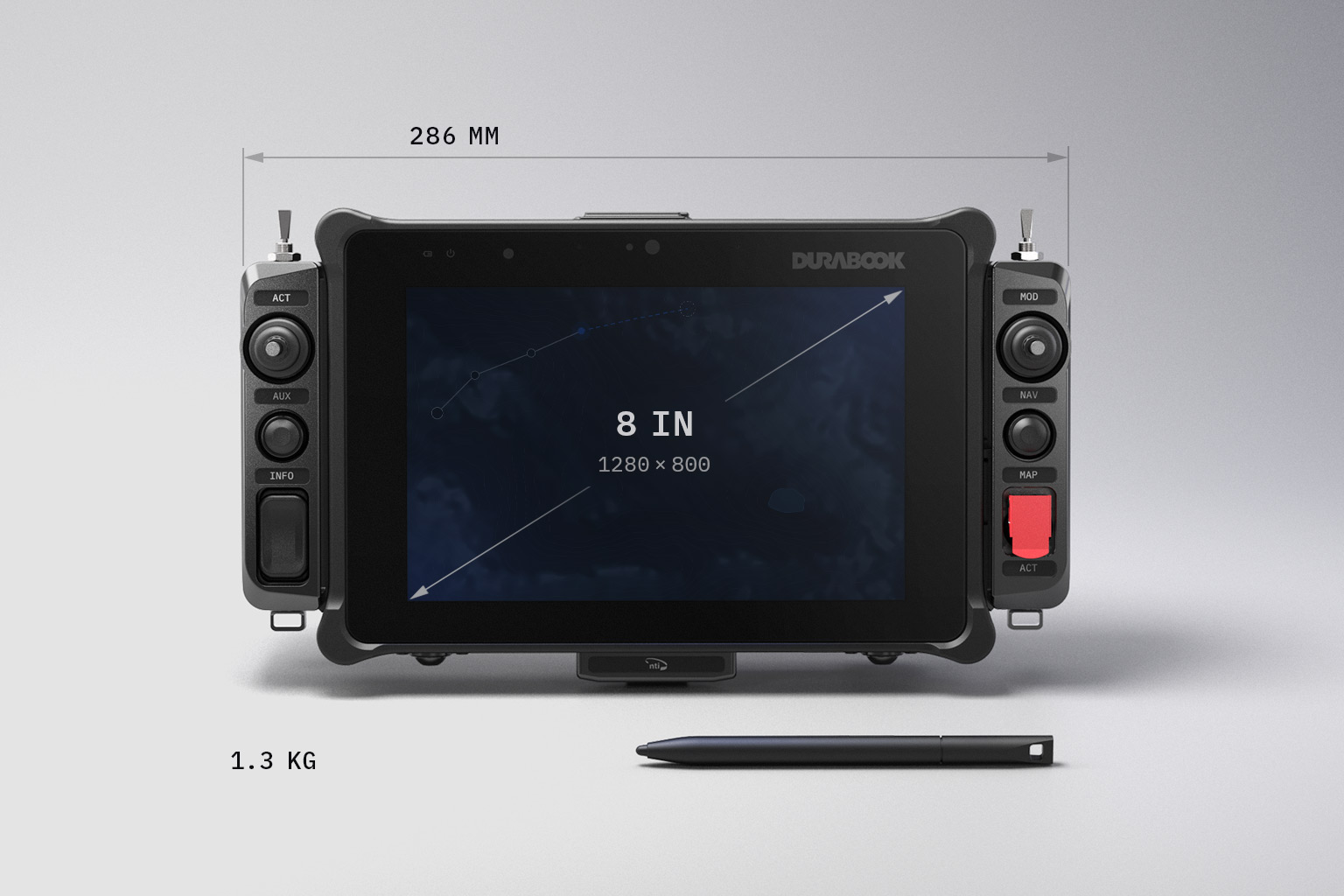

Compact 8" Platform
Built on a rugged 8-inch control platform, the ND-8 Flex is designed for portable operation where size, weight, and mobility matter.

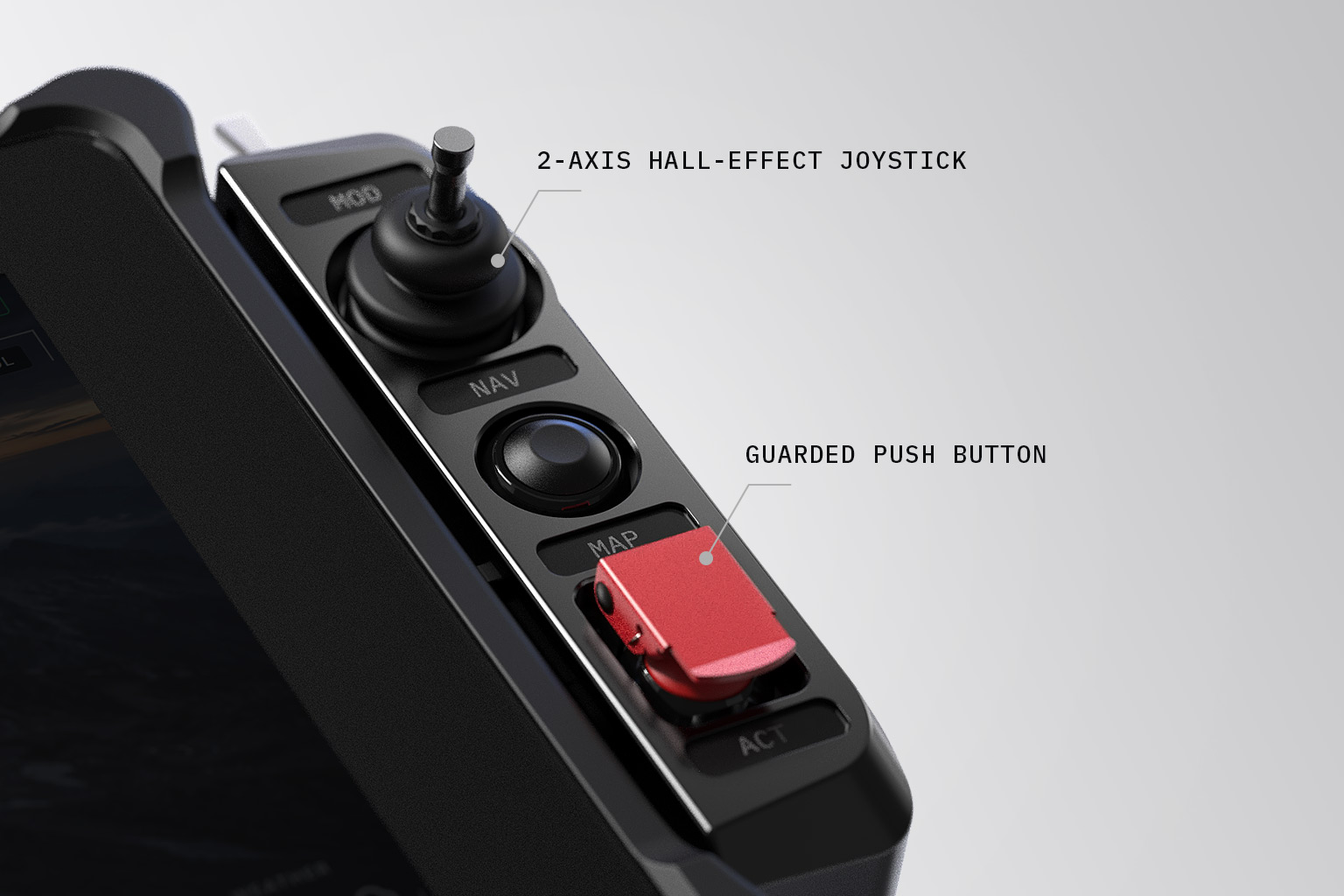

Integrated Manual Controls
Physical controls are built into the system for precise operator input and efficient operational handling in the field.

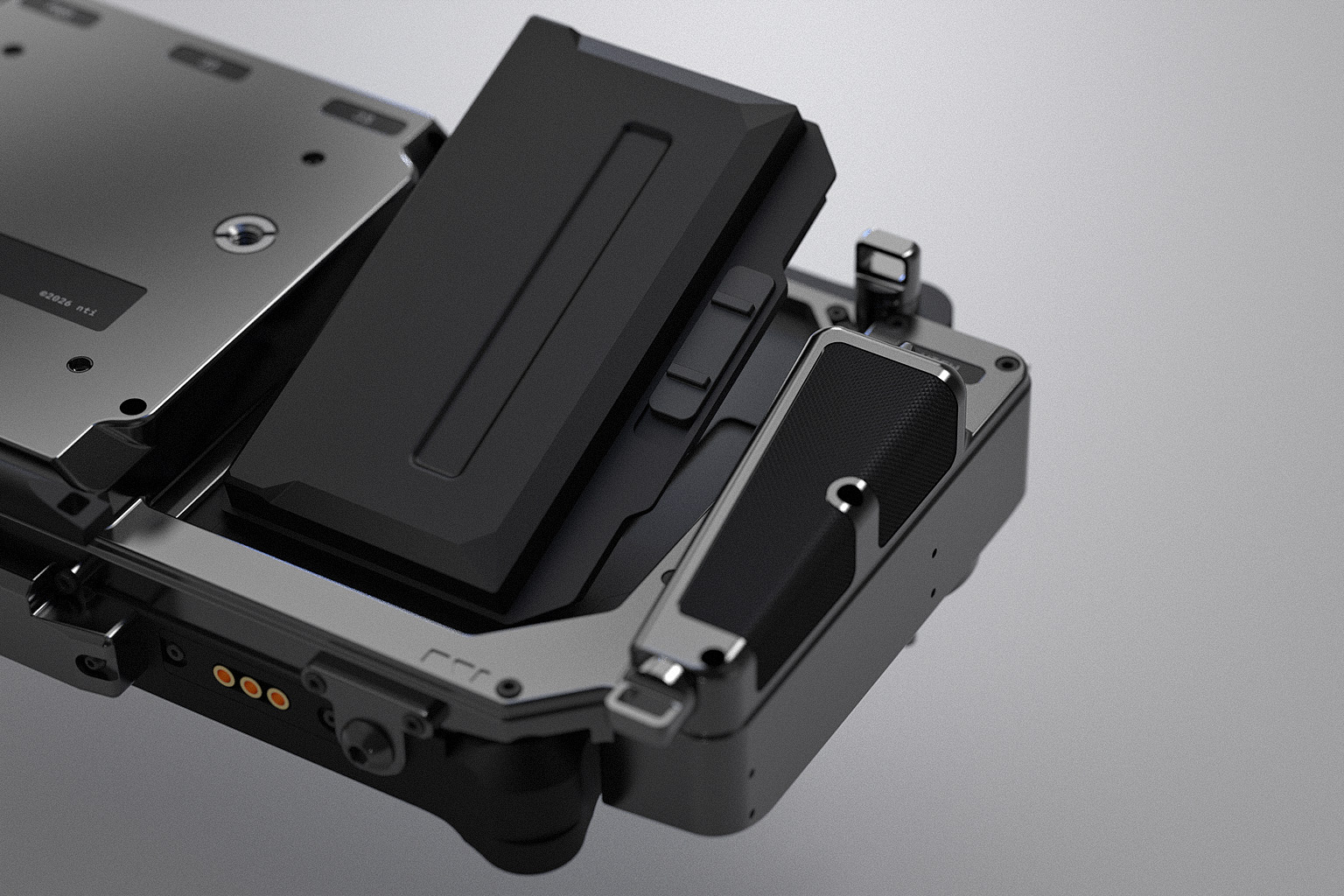

Fast Battery Access
The Flex configuration allows quicker battery replacement, helping reduce downtime during active field use.

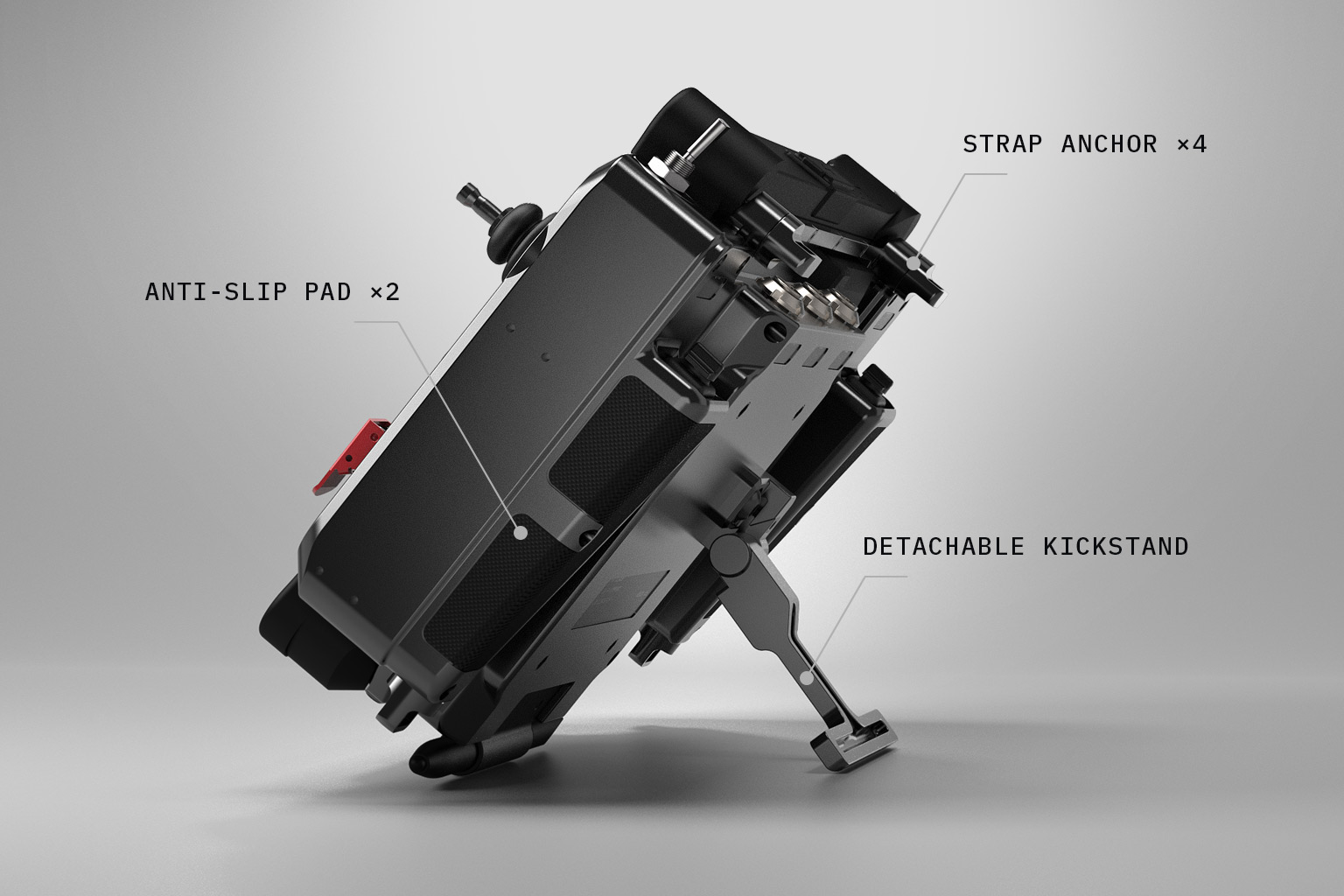

Built for Mobile Deployment
A detachable kickstand, VESA 75×75 mounting and strap anchors let the unit stand on a surface, mount to a panel or be carried, with anti-slip grips on the housing for handling in the field.

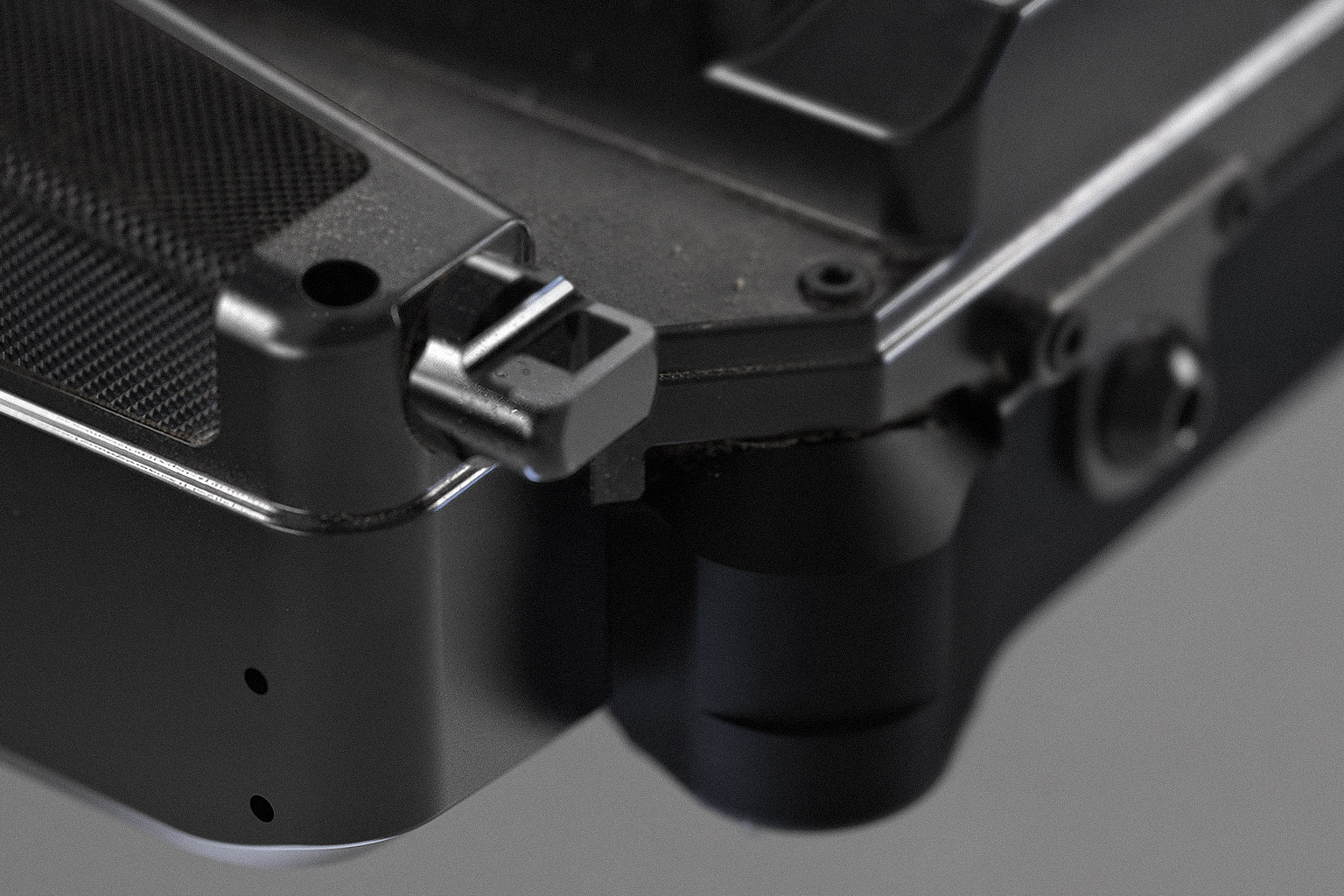

Rugged Field Reliability
Engineered for dependable performance in demanding outdoor conditions where durability and operational stability are essential.

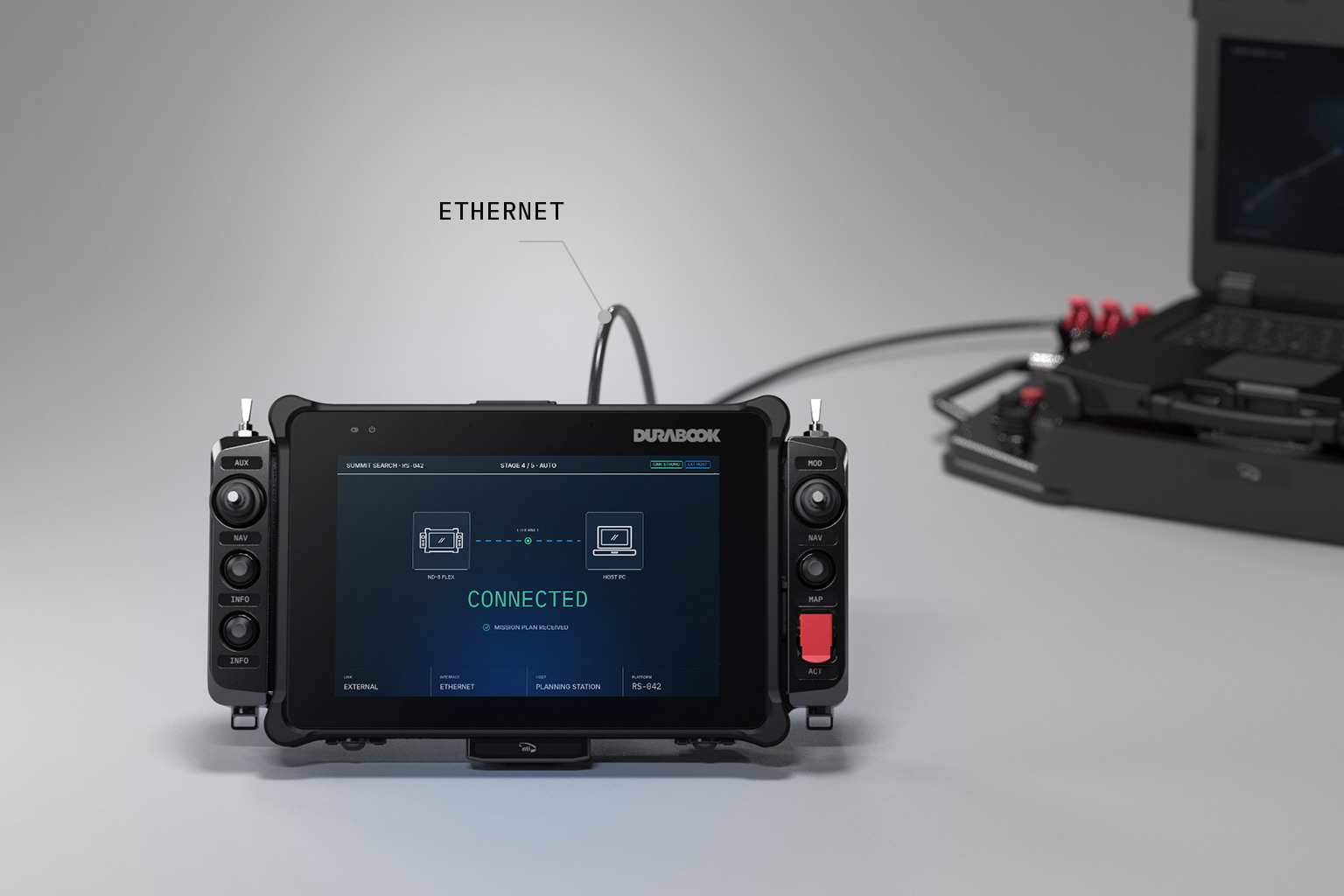

Flexible Mission Integration
The system can be configured to support operation–specific interfaces, external equipment, and platform requirements.
Typical Applications
Designed for portable control across UAV, UGV, security, and industrial robotic platforms.
Industrial & Infrastructure
Inspection, monitoring, utilities and automation.
Agriculture & Smart Farming
Field operations, sensing and crop management systems.
Public Safety & Emergency
Firefighting, search-and-rescue and municipal operations.
Security & Monitoring
Autonomous surveillance and perimeter systems.
Weight: 1.3 kg (with tablet)
Ingress protection: IP66
Processor: Intel Core i7-1250U with vPro (12 MB cache, up to 4.7 GHz, 2P+8E cores); Intel Core i5-1230U with vPro (12 MB cache, up to 4.4 GHz, 2P+8E cores); Intel Pentium Gold 8500 (8 MB cache, up to 4.4 GHz, 1P+4E cores)
Memory: 8 GB onboard, up to 16 GB LPDDR4x
Storage: 128 GB NVMe PCIe SSD; optional 256 GB / 512 GB / 1 TB
Operating system: Windows 11 Pro 64-bit

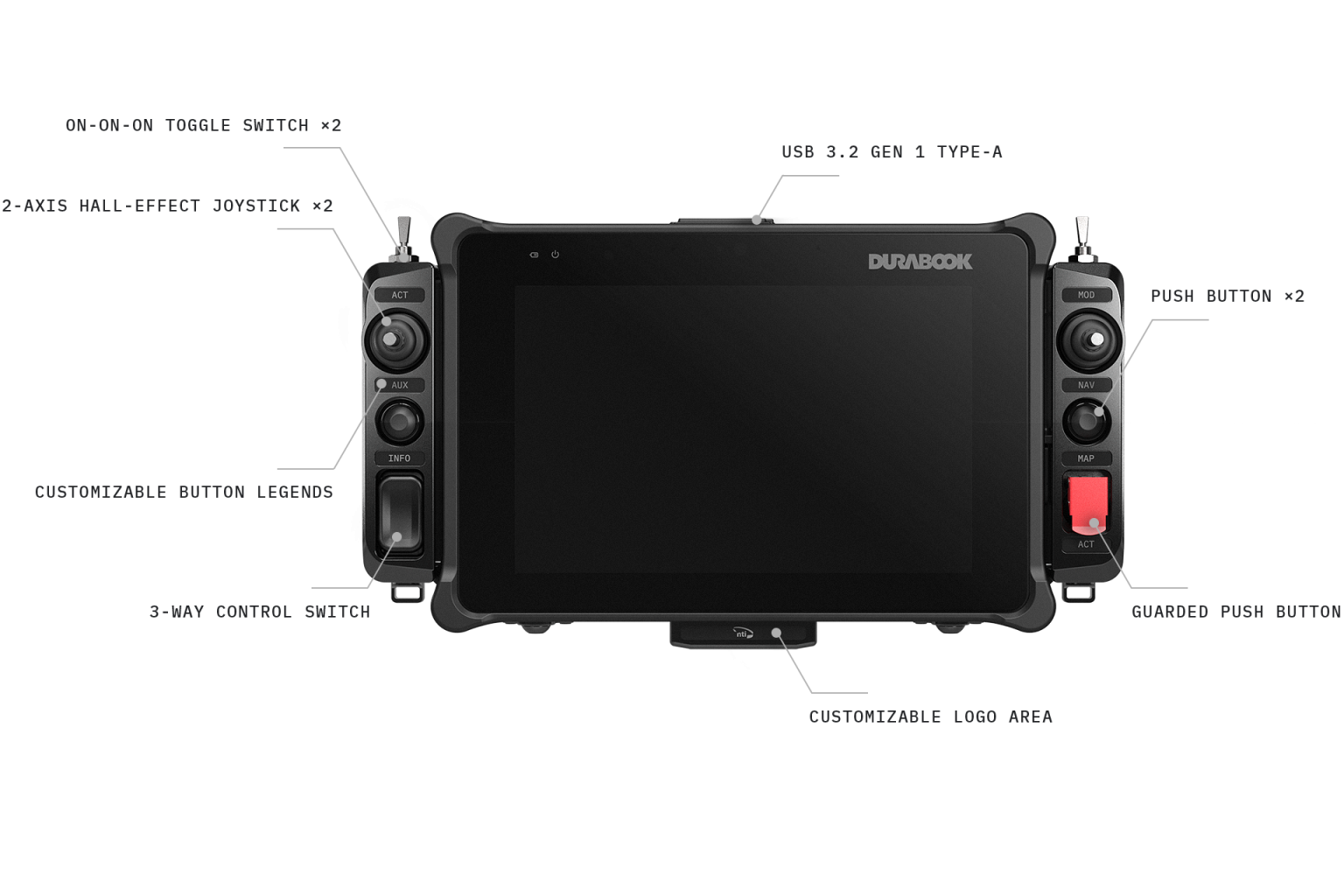

800 nits DynaVue sunlight-readable display, capacitive multi-touch

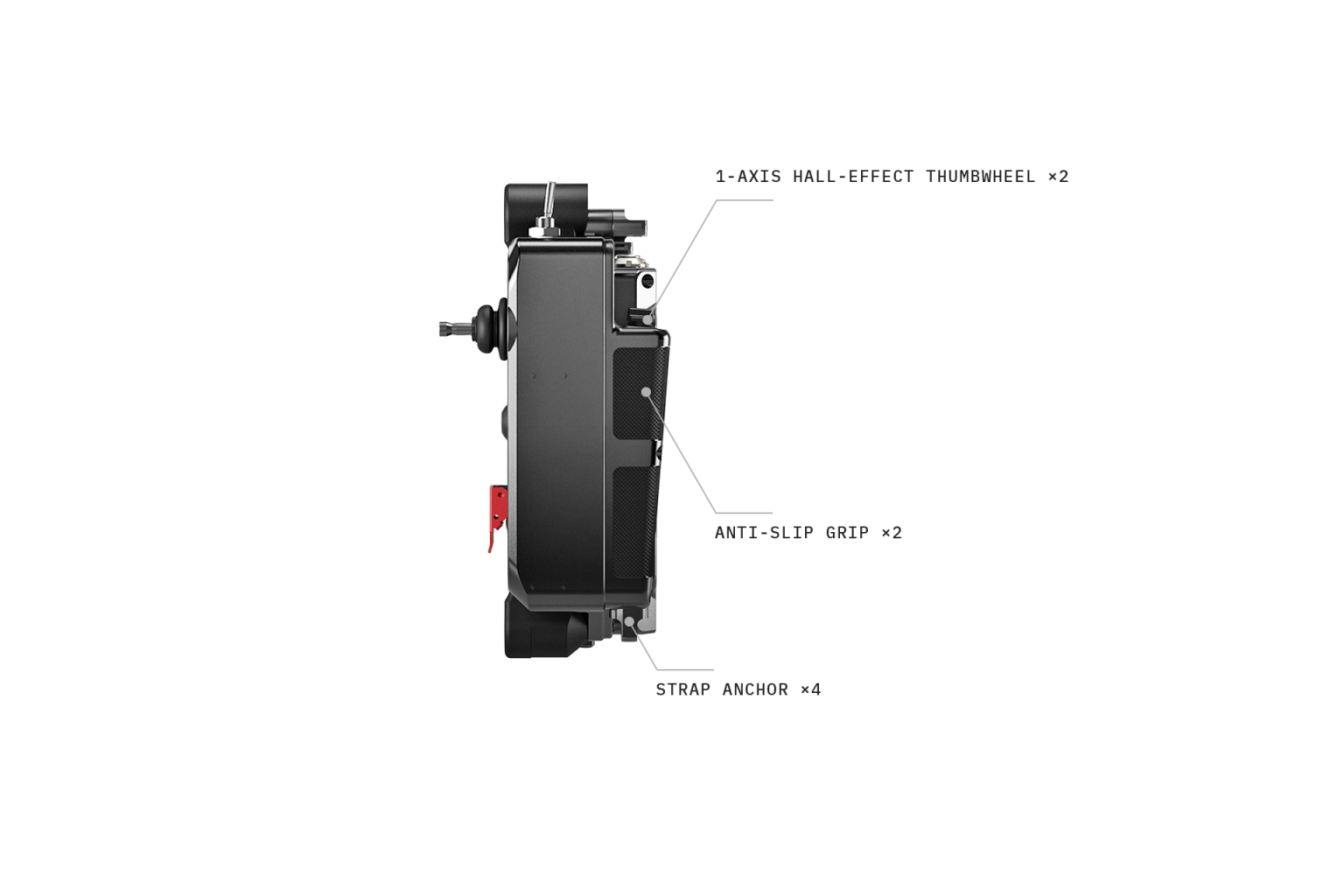

2× 1-axis Hall-effect thumbwheel switches
4× push buttons
1× push button with protective cover
1× 3-way control switch
Custom function labels
Optional: Mom-Off-Mom or On-On-On toggle switches; 2-axis Hall-effect castle joysticks; additional push button with protective cover or 3-way control switch

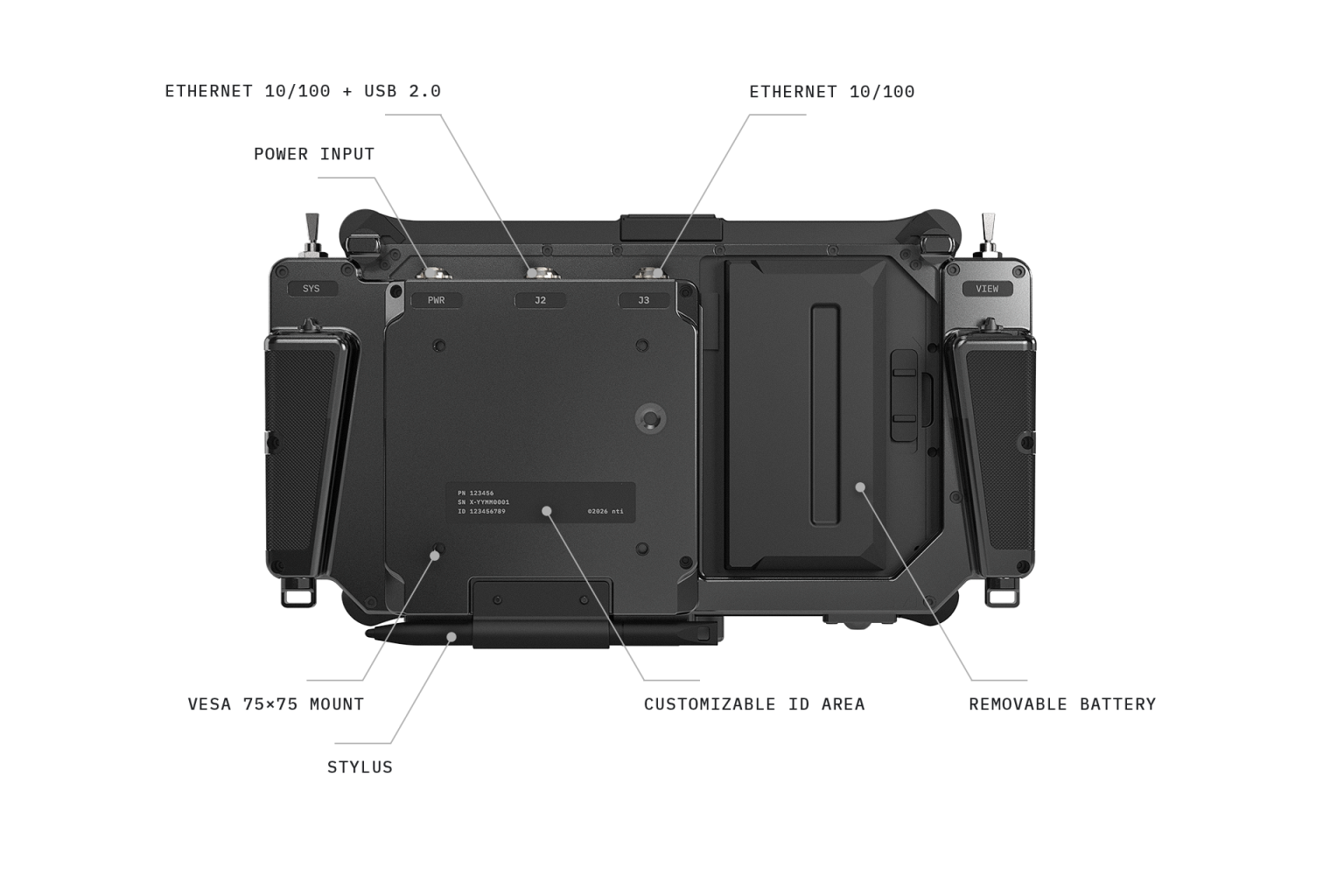

2× Ethernet 10/100
USB 2.0
USB 3.2 Gen 1 Type-A
Optional: LTE, Wi-Fi / Bluetooth, GPS
Optional: 12–32 V DC input
Main battery: Li-Ion 7.6 V, 4800 mAh
Optional: high-capacity Li-Ion 7.6 V, 9600 mAh
Swappable battery: 5-minute swap; the system stays operating for up to 300 s in standby while the battery is replaced
Secured-core PC
TPM 2.0
NIST BIOS compliant
Stealth mode
Strap anchors
Anti-slip grip pads
Stylus
Optional: detachable kickstand
ID product label and customizable label with client's logo
Integrated tablet: Durabook R8 — MIL-STD-810H, MIL-STD-461G, IP66 (manufacturer certified)
