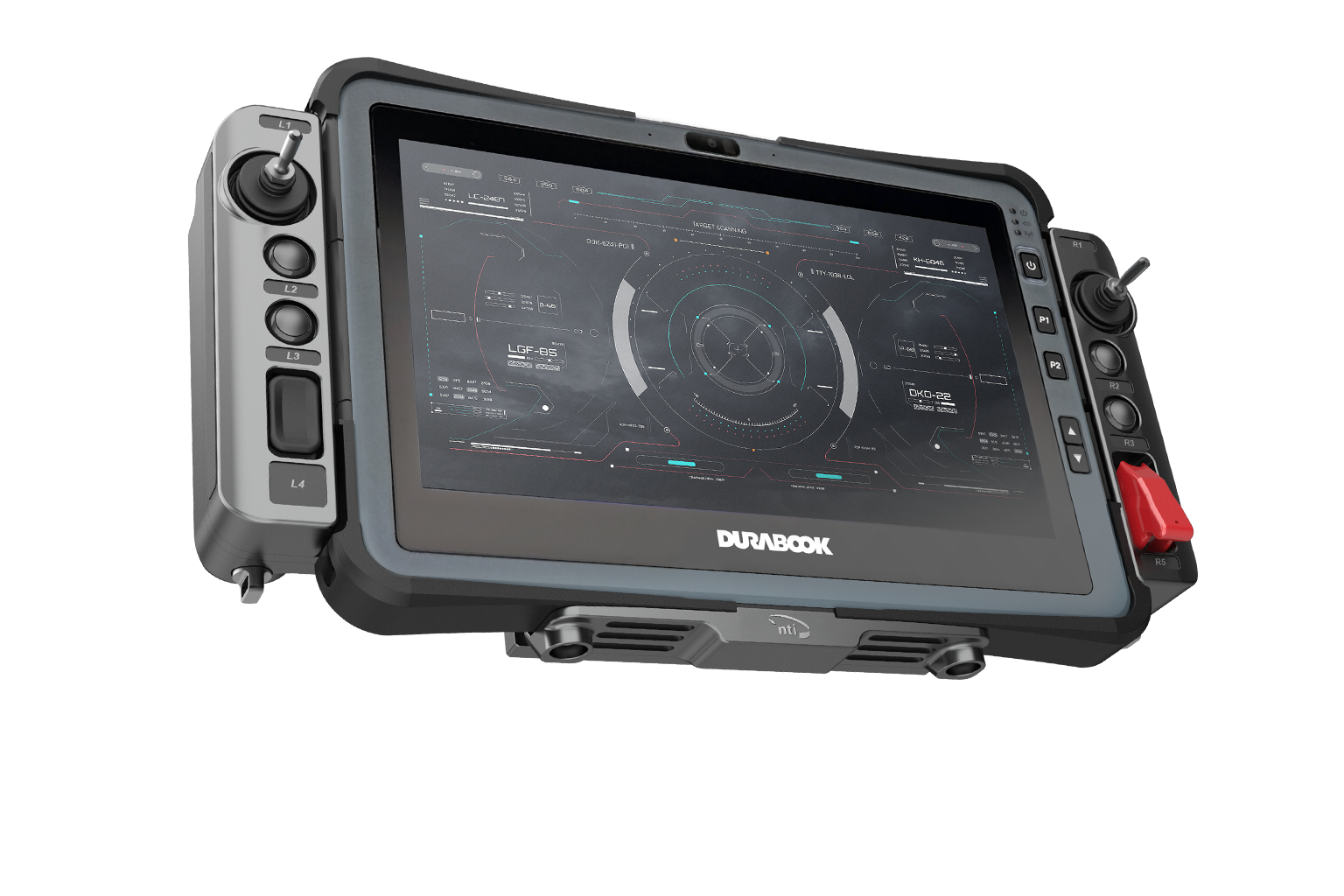

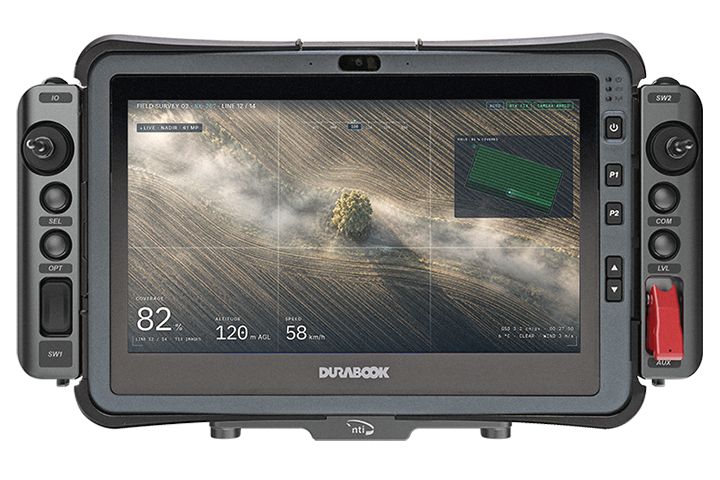

Dragonfly ND-11
Download Datasheet
Rugged Ground Control with an Expanded 11.6" Operator Workspace

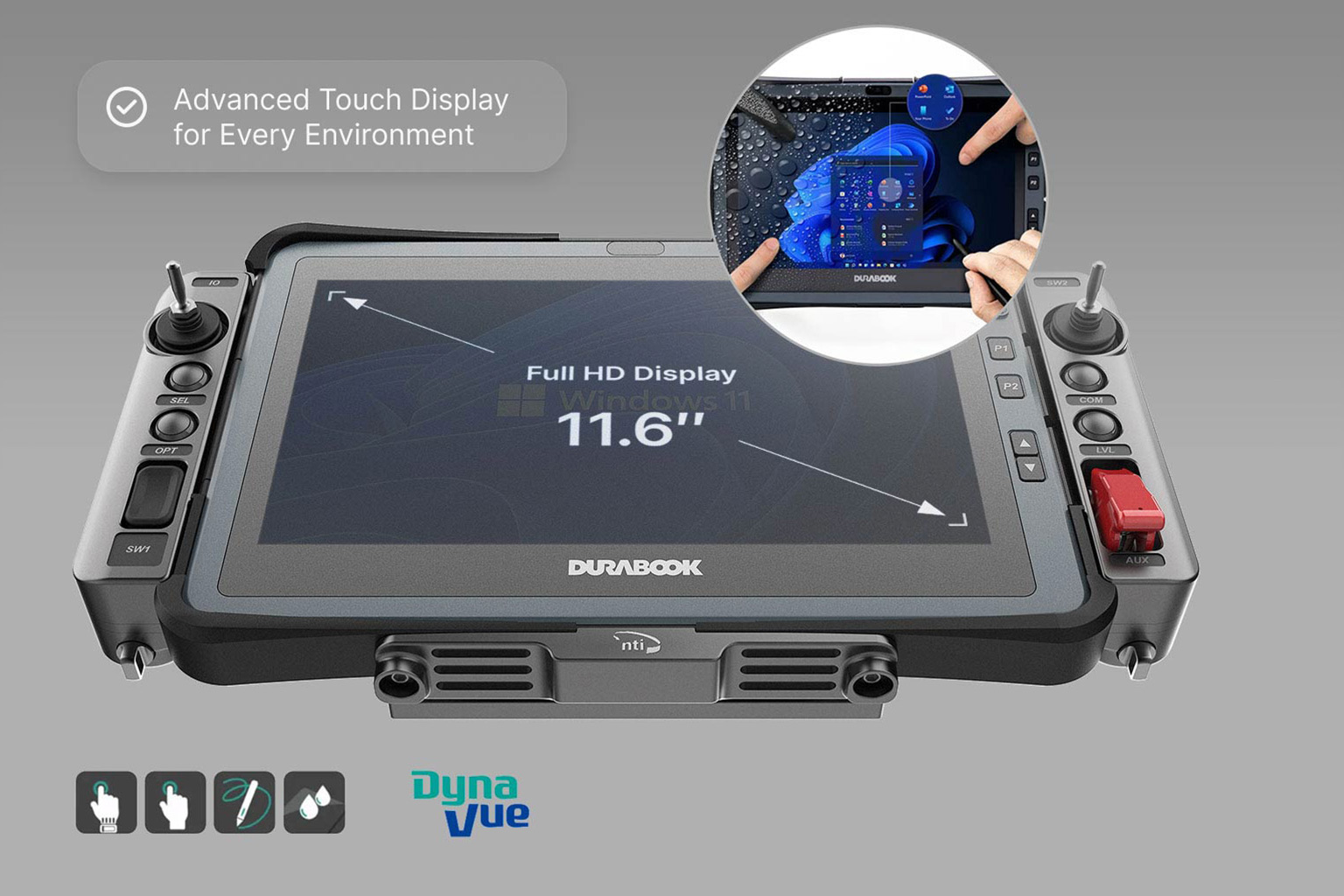

11.6" High-Brightness Display
A large 11.6-inch display gives the operator more workspace for video, telemetry, mapping, and control software in both daylight and low-light conditions

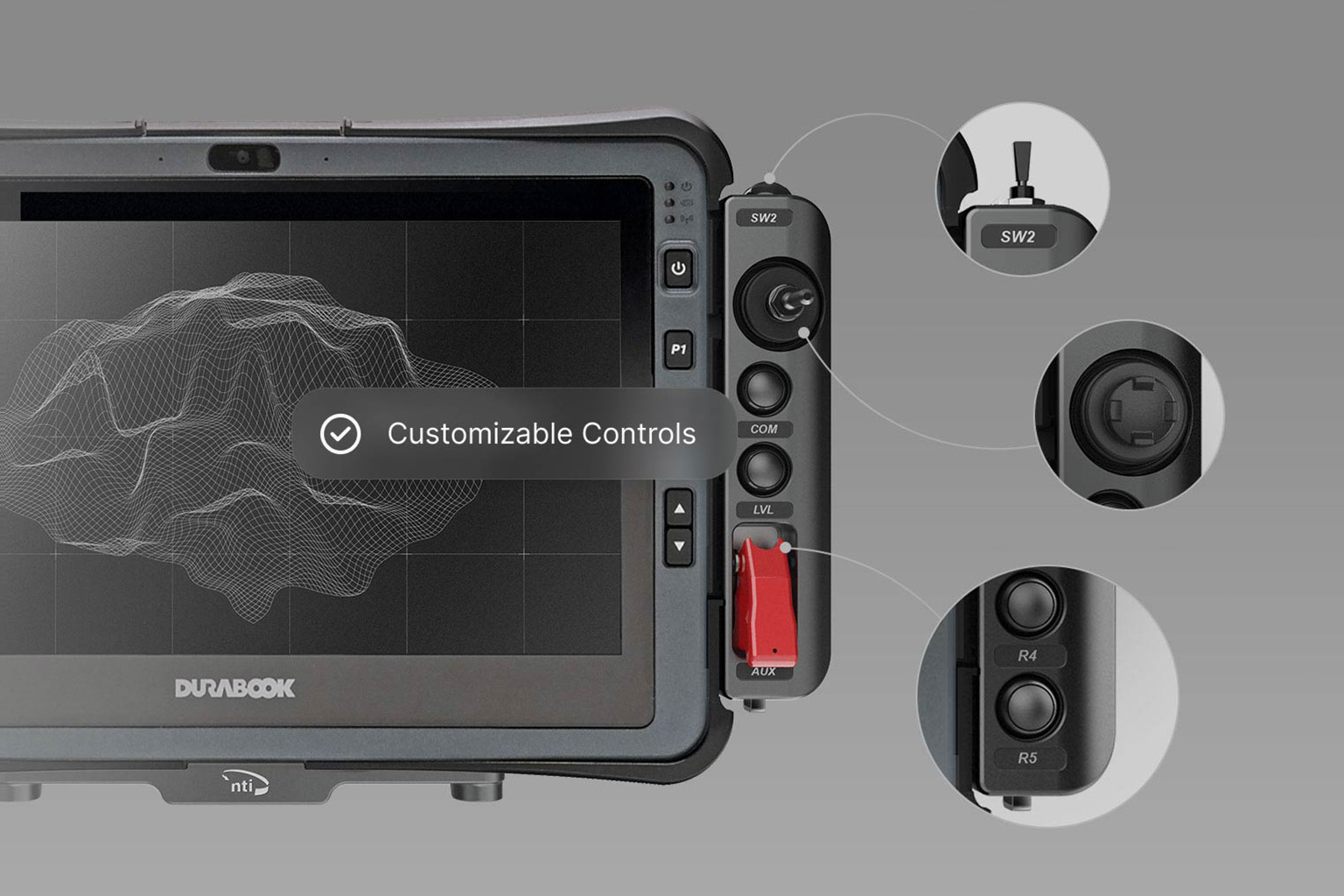

Fully Customizable Controls
The control layout can be configured to match application requirements, with customizable joysticks, switches, and function keys for the required workflow.

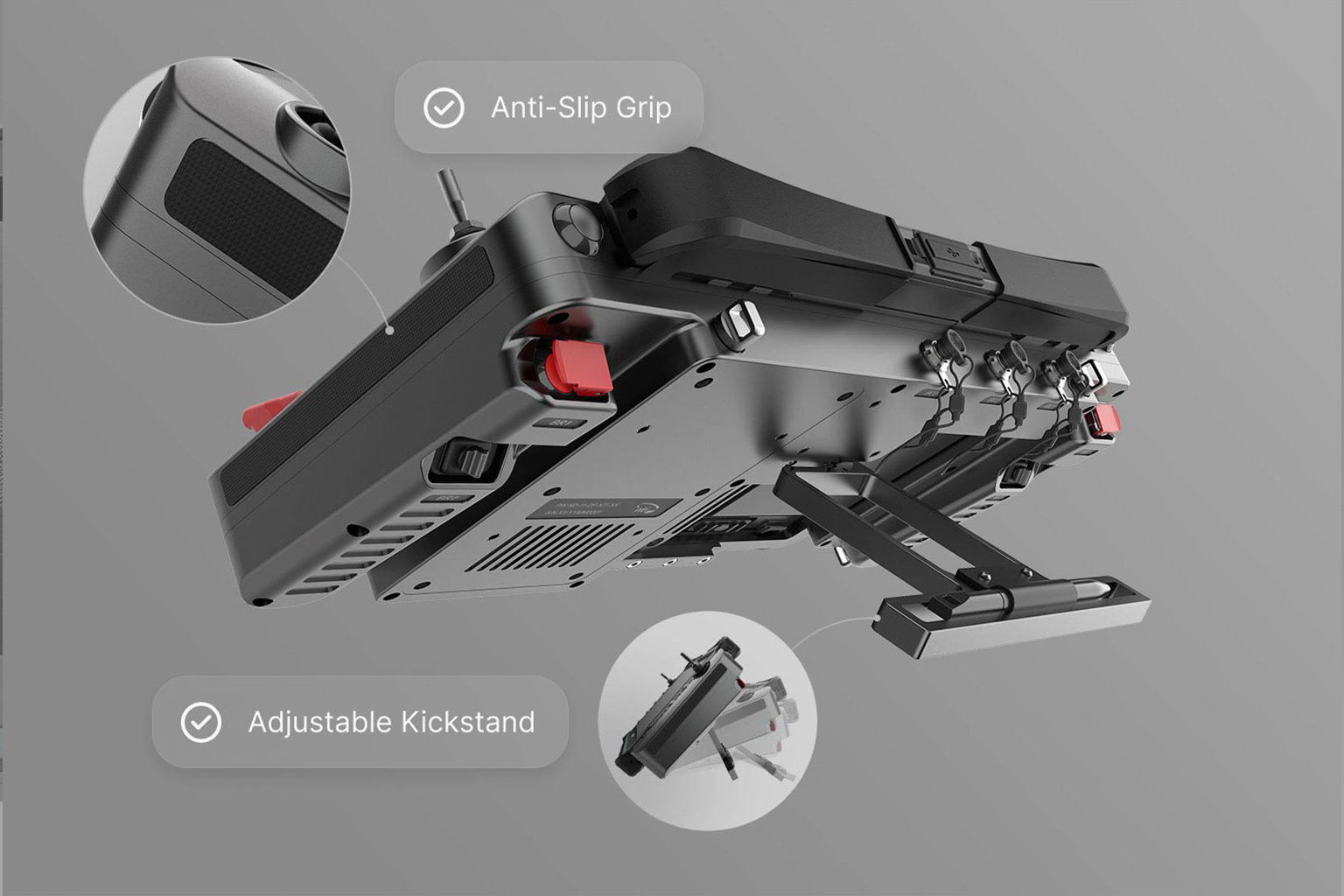

Built for Field Ergonomics
An integrated rugged kickstand, balanced design, and optimized grip points support comfortable handheld or stationary operation in the field.

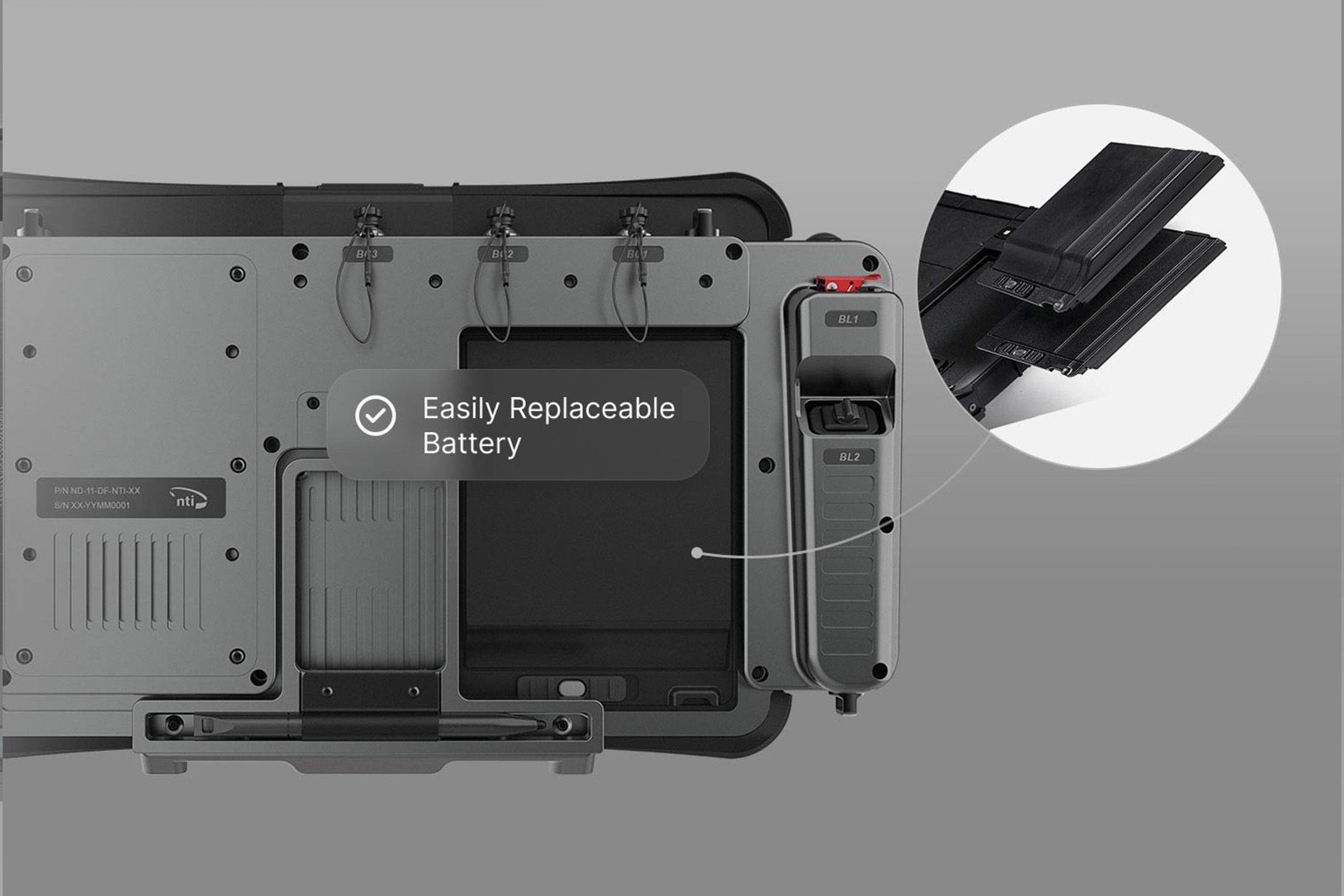

Hot-Swap Battery Operation
Hot-swappable batteries with a bridge pack allow battery replacement without shutting down the system, helping maintain continuous operation in the field.

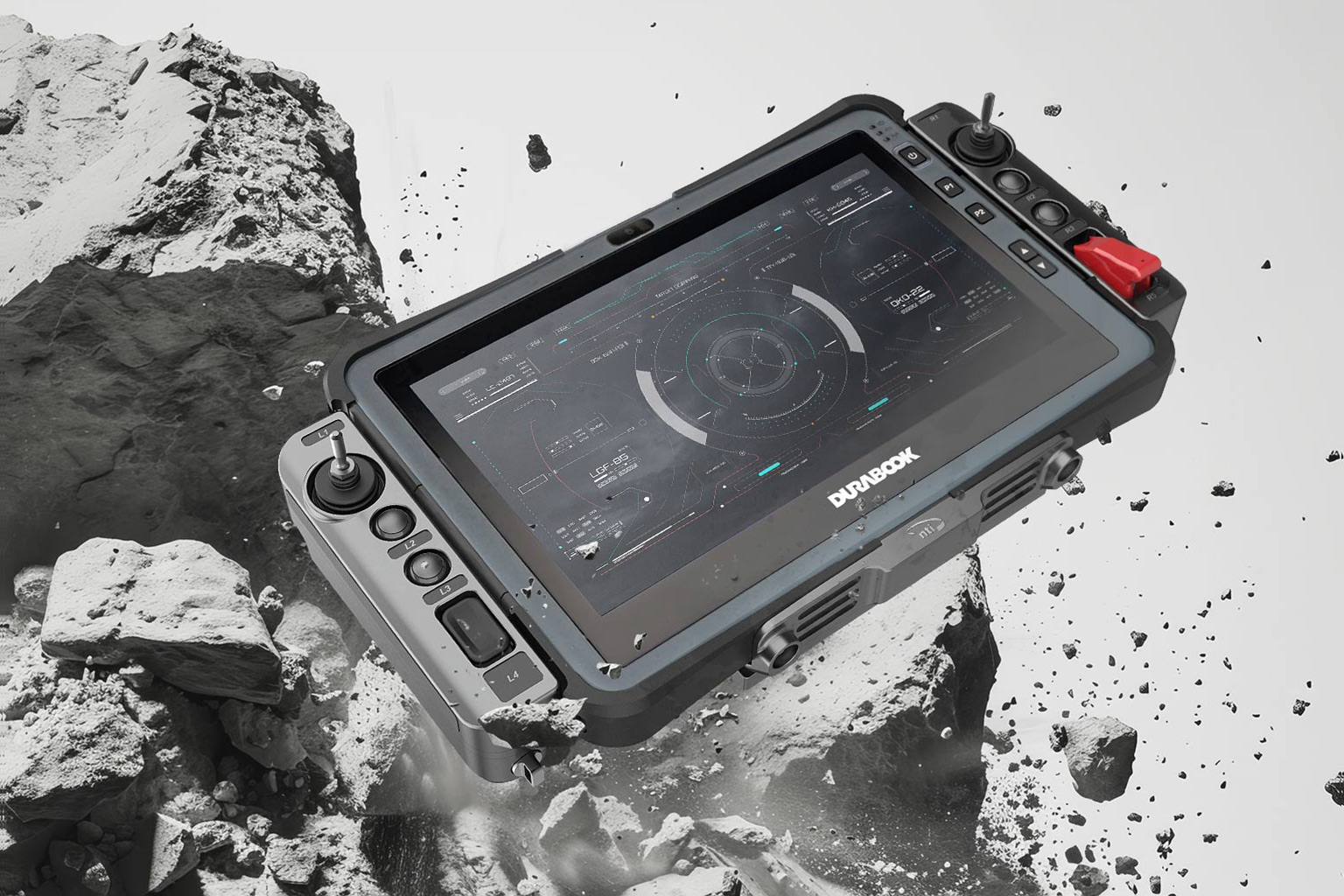

MIL-STD and IP66 Ruggedization
Engineered to meet MIL-STD-810H and IP66 requirements, the ND-11 is built to withstand shock, vibration, dust, humidity, and demanding outdoor environments.

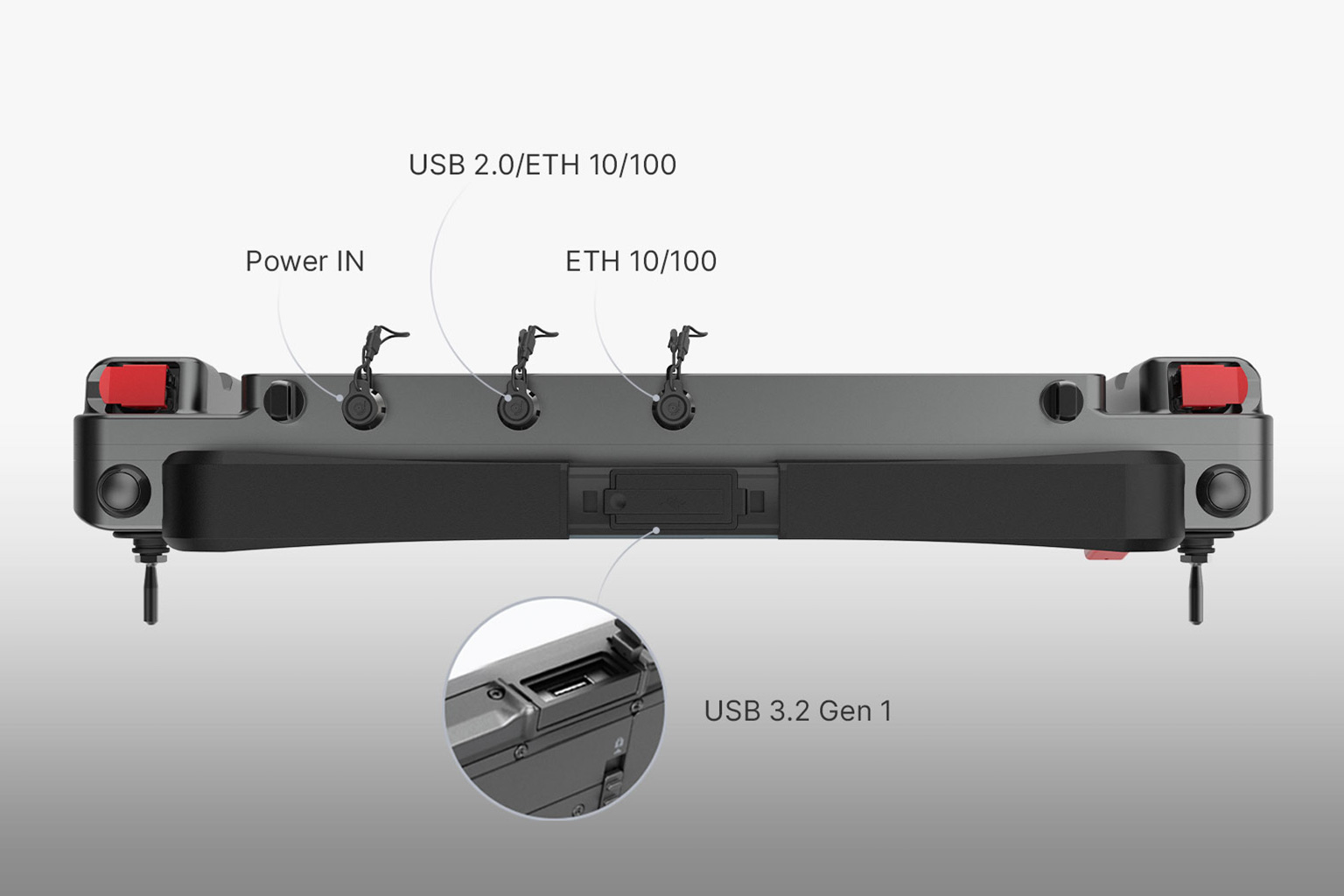

Modular I/O and Expansion
Multiple interfaces, including USB, Ethernet, and serial connectivity, support integration with sensors, external devices and external communication systems.
Typical Applications
Built to support remote control and monitoring across aerial, ground, and marine platforms in industrial and commercial environments.
Aerial Systems
Operator control for multirotor, fixed-wing and VTOL platforms.
Robotics
Ground robots, autonomous vehicles and industrial robotic systems.
Marine Platforms
Surface and marine-based autonomous systems.
2 Axis Hall Effect Joystick x 2
2 Axis Thumbwheel Hall Effect Switch x 2
Red Push Button with Red Protective Cover x 2
6 Black Push Buttons up to x 8
3 way control switch
Optional: Toggle Switches x 3 (configurable number of positions)
Optional: Toggle Guards
Ethernet 10/100 x 2
USB 2.0 x 1
USB 3.2 Gen1 TYPE – A x 1
Additional interfaces available upon request
Rugged, harsh-environment connectors
J1 – Power input
J2 – Ethernet/USB
J3 – Ethernet
Additional connectors available upon request
19V (DC)
Optional: Built-in DC/DC Converter with customizable input voltage
(upon customer’s spec)
452 mm (L) x 220 mm (W) x 104 mm (H) 2.8 kg (with a tablet)
(Dimensions and weight may vary depending on configuration)
