Operator Controllers

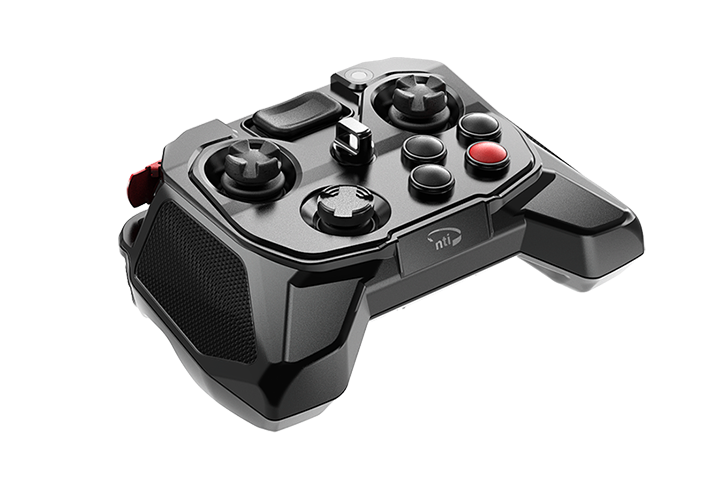

Dragonfly PD-1

Rugged Manual Control for Drones and Robotic Systems.

Contact Sales

Download Datasheet

Get a Quote

Overview

Compact Control, Built to Last

The PD-1 is a compact, lightweight, and ergonomic operator controller for drones and robotic systems. Housed in hard-anodized aluminum and sealed to IP66, it pairs high-precision Hall-effect inputs with a simple wired connection — delivering accurate, dependable control in the field, mission after mission.

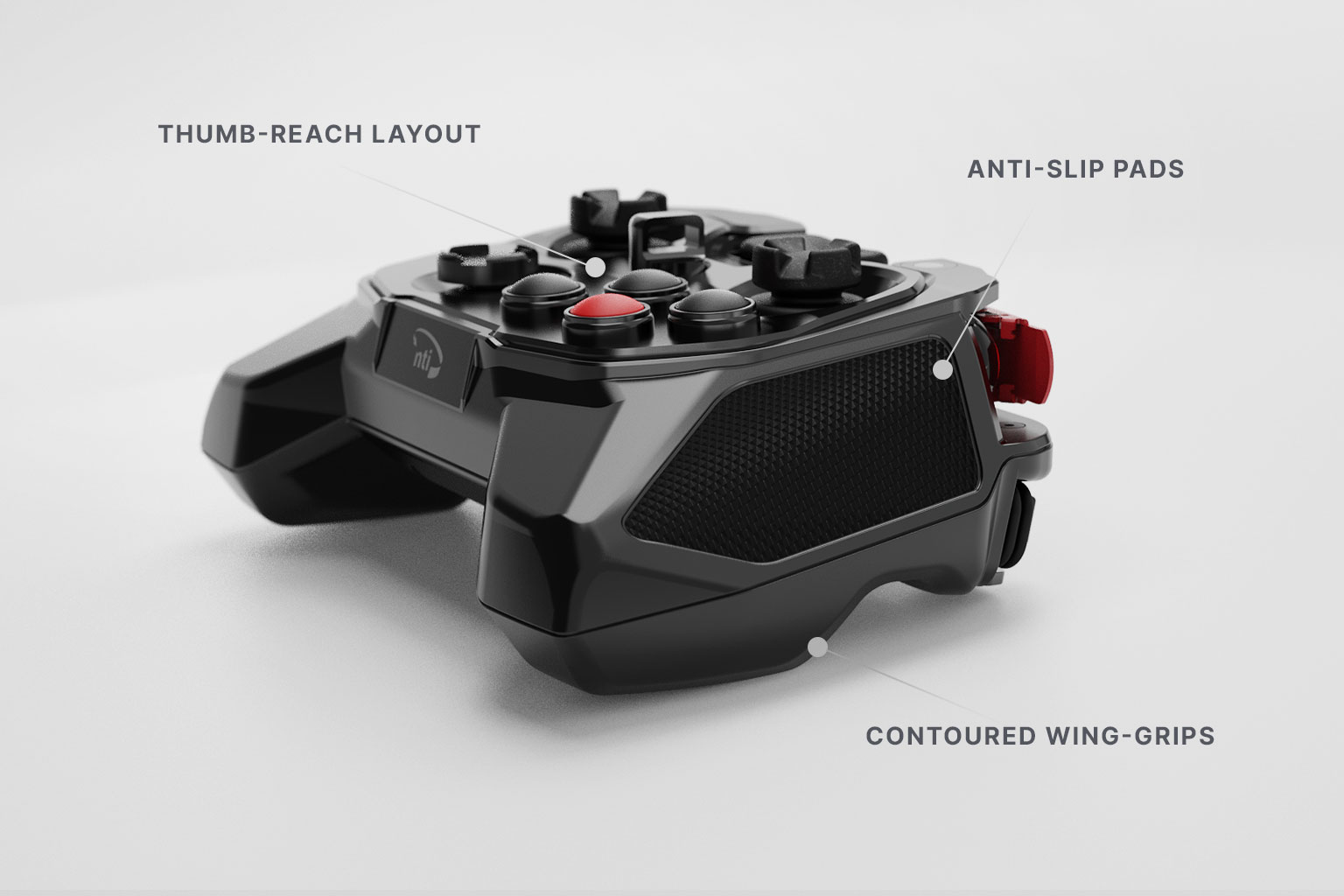

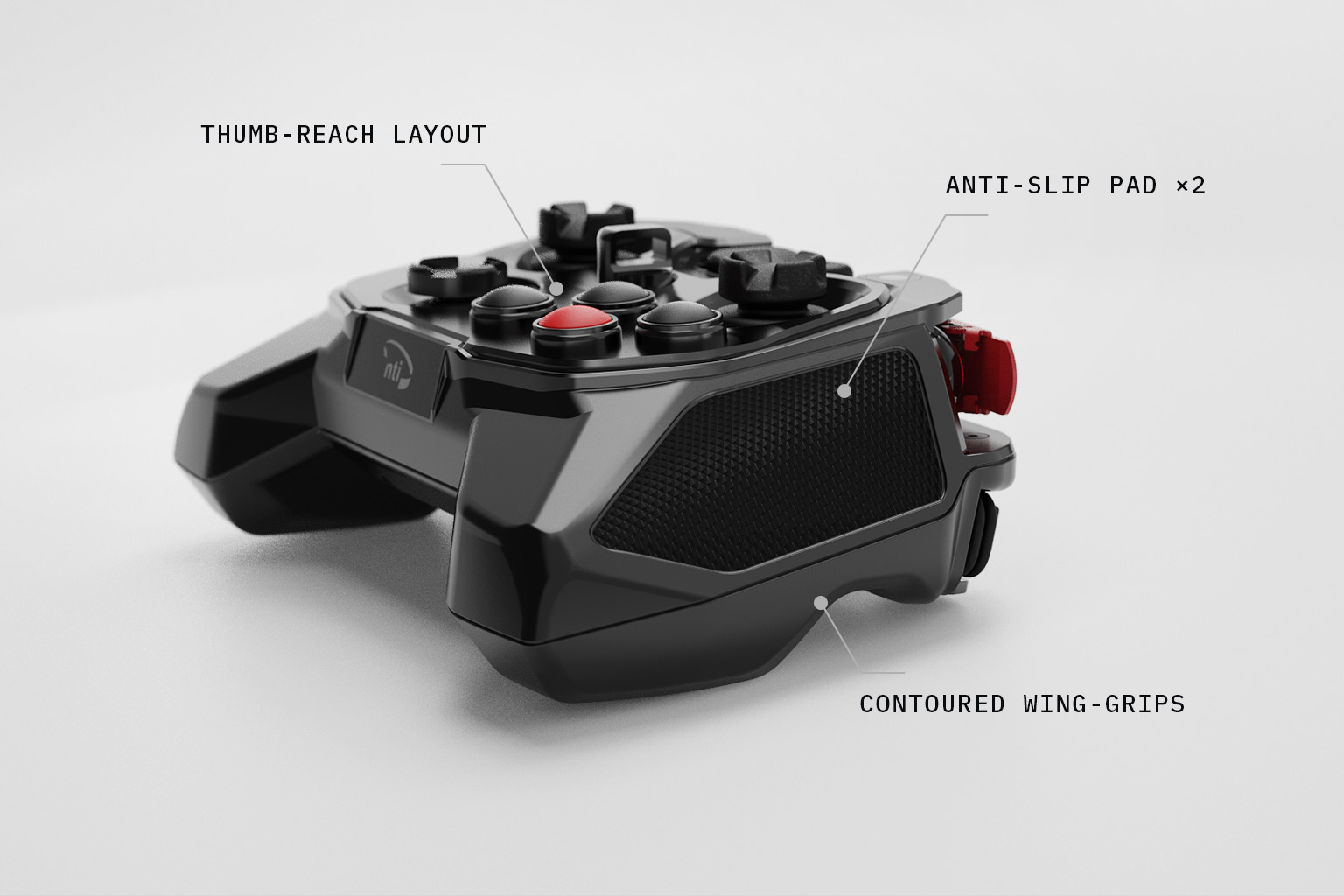

Compact Ergonomic Design

Compact, lightweight construction and an operator-focused layout support comfortable handling during extended operations.

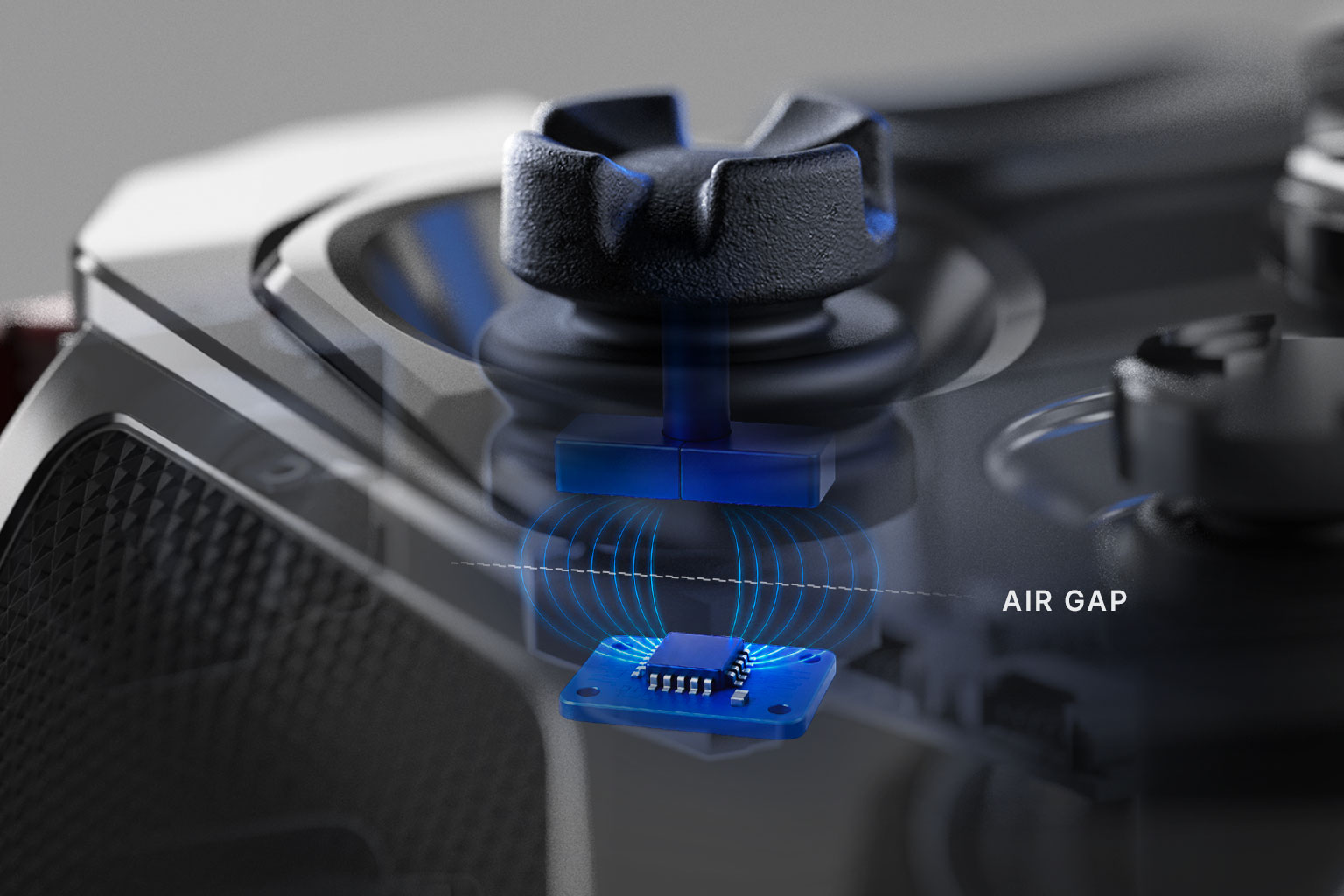

High-Precision Hall-Effect Sticks

Contactless Hall-effect control sticks provide smooth, accurate input with no mechanical wear, for consistent handling over the life of the unit.

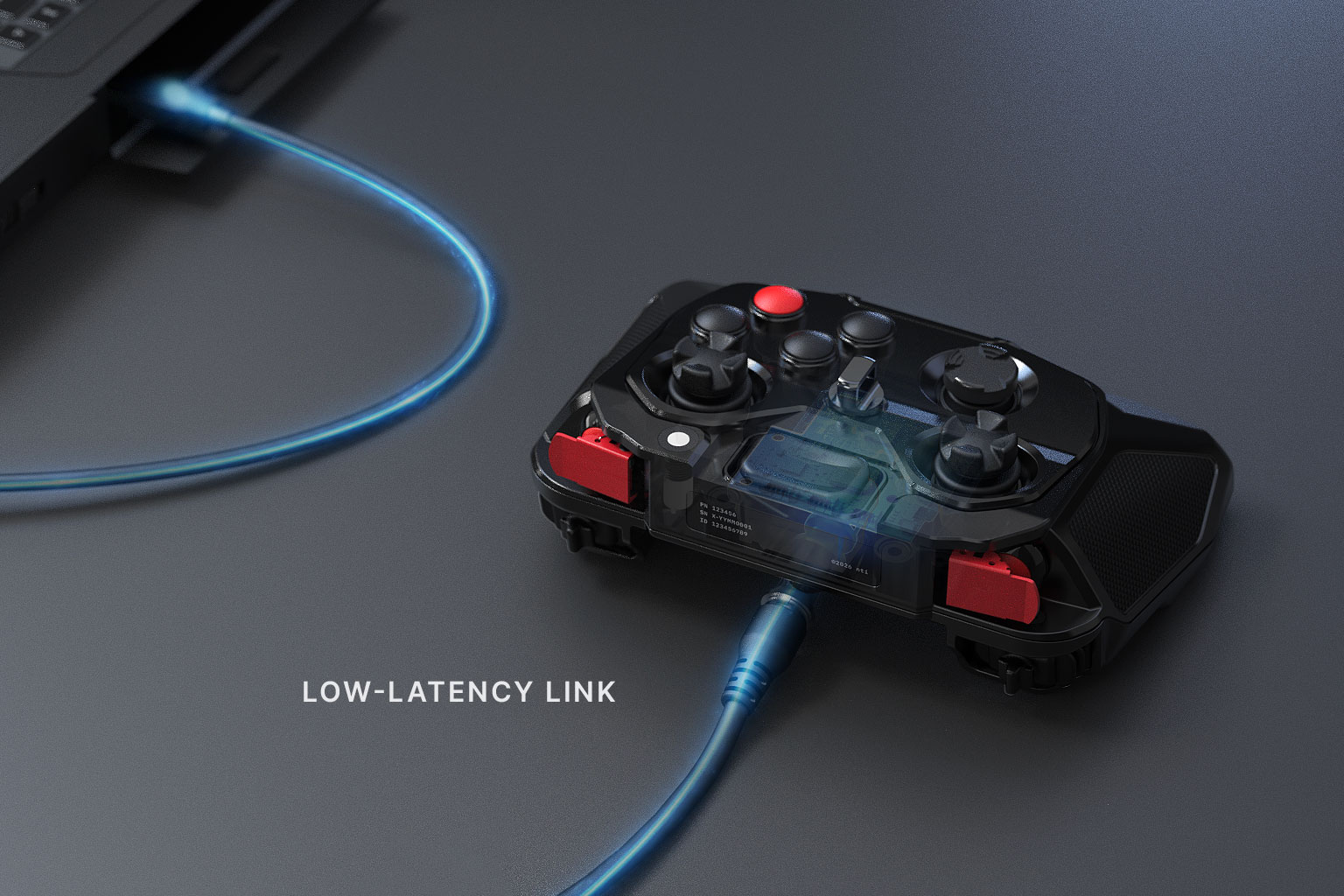

Wired, Low-Latency Control

The PD-1 connects to your device over a direct USB 2.0 wired link — no radio, no pairing, no wireless interference. Input travels straight to the device as a standard HID connection, for immediate, consistent response with none of the latency or dropouts that affect RF control.

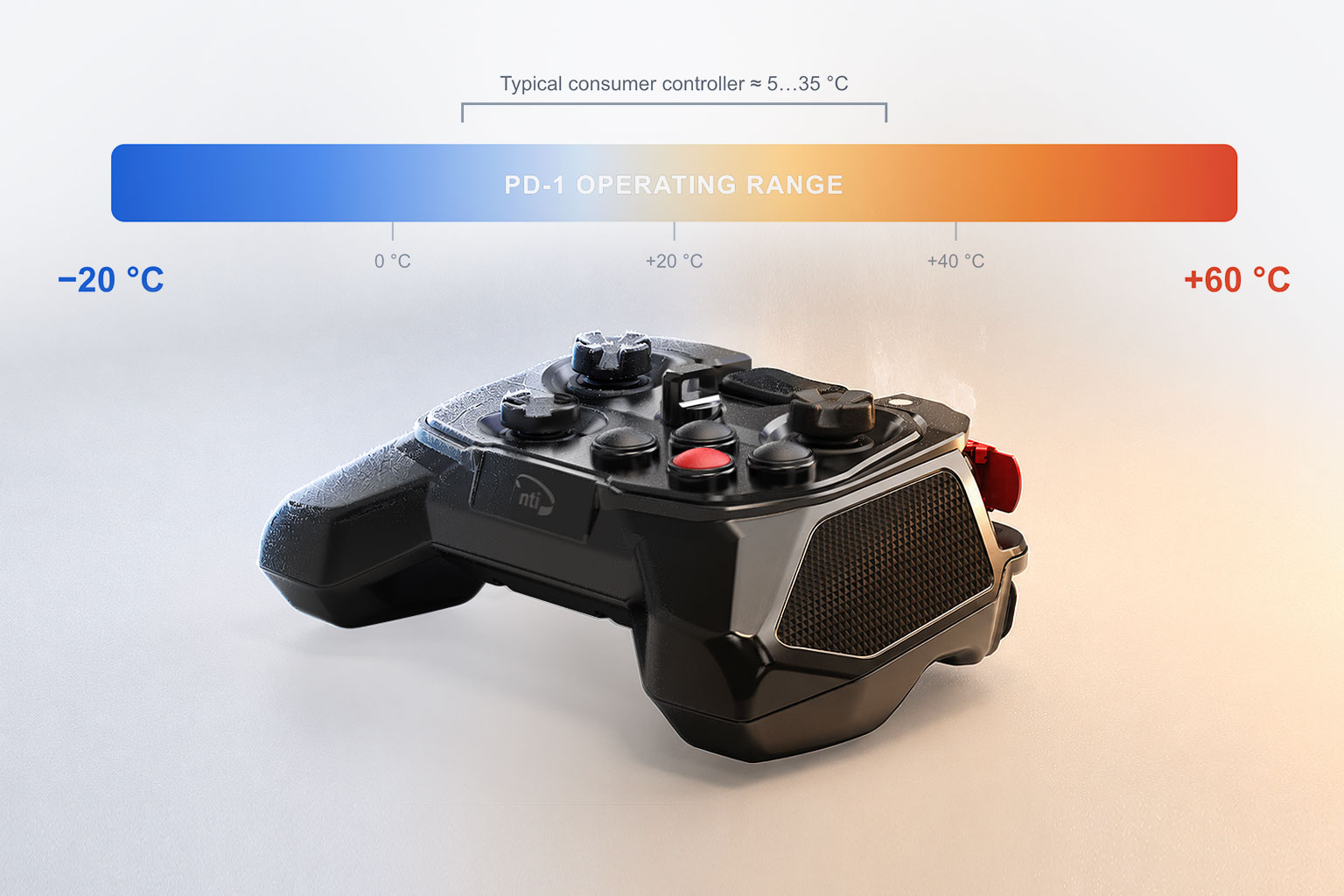

Rugged Aluminum Construction

A machined aluminum housing with a MIL-spec hard-anodized finish, sealed to IP66 and rated from −20 °C to +60 °C, stands up to dust, water jets, and harsh outdoor environments.

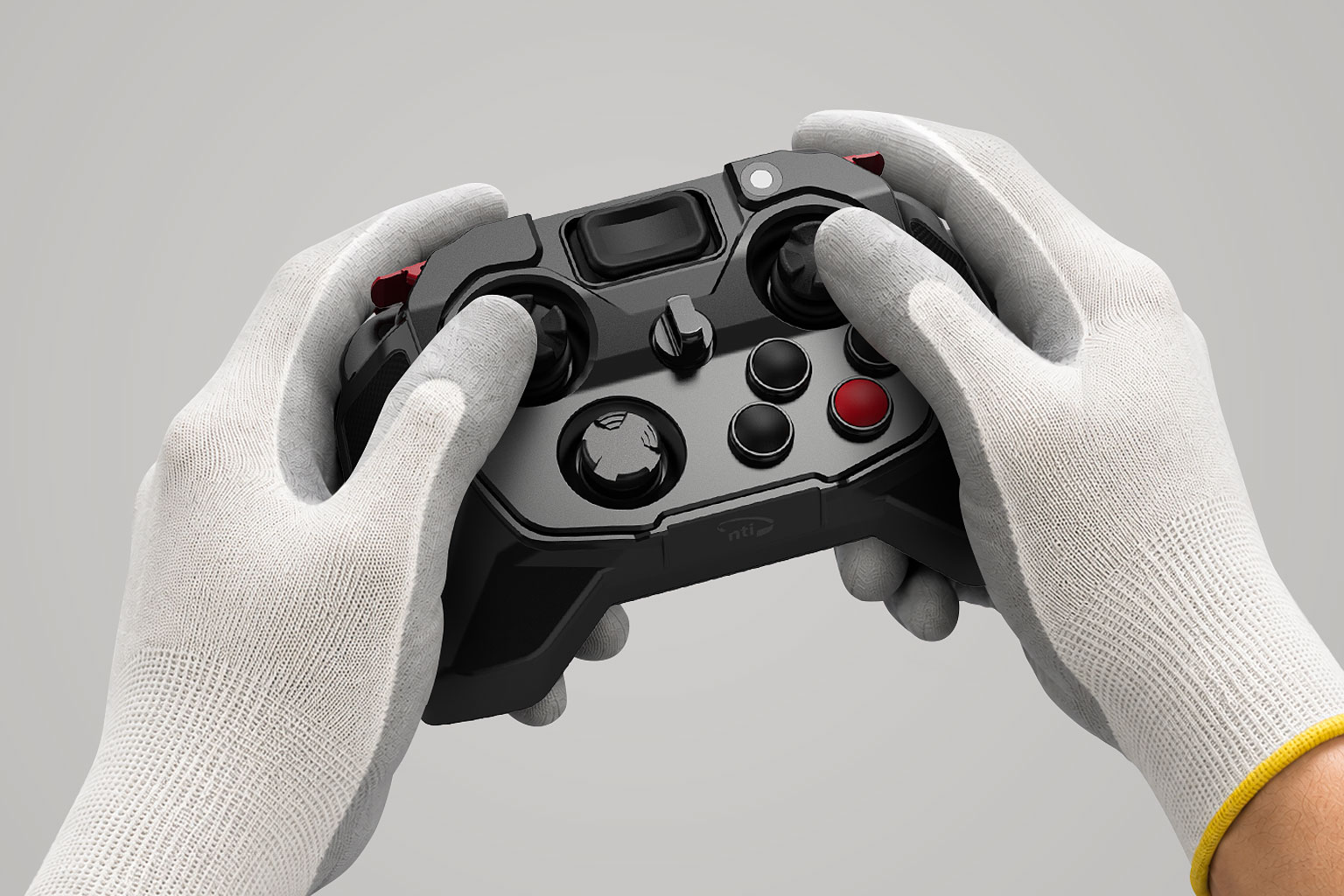

Glove-Ready Inputs

Controls are sized and spaced for confident operation with gloves, keeping operators in full command in cold, rugged, or protective-gear conditions.

Typical Applications

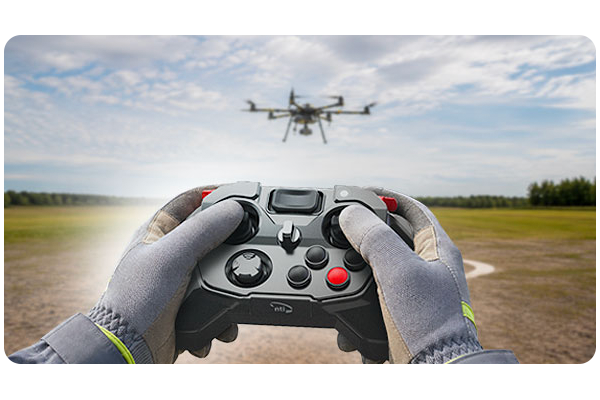

UAV / Aerial Systems

Operator control for multirotor, fixed-wing and VTOL platforms.

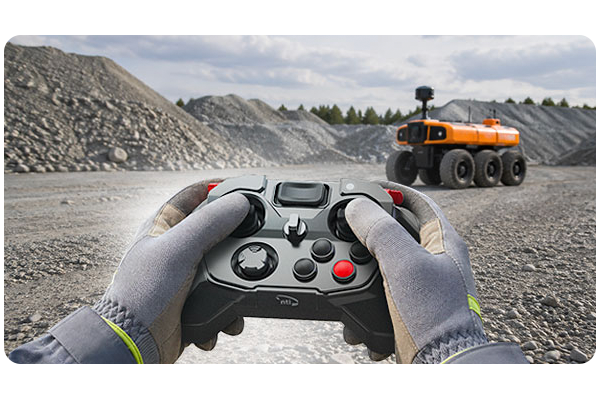

UGV & Robotics

Ground robots, autonomous vehicles and industrial robotic systems.

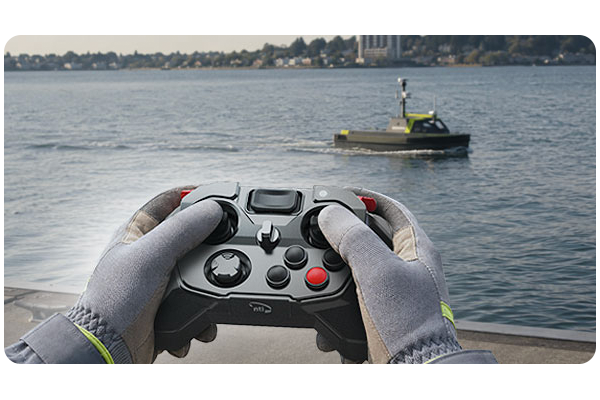

USV / Marine Platforms

Surface and marine-based autonomous systems.

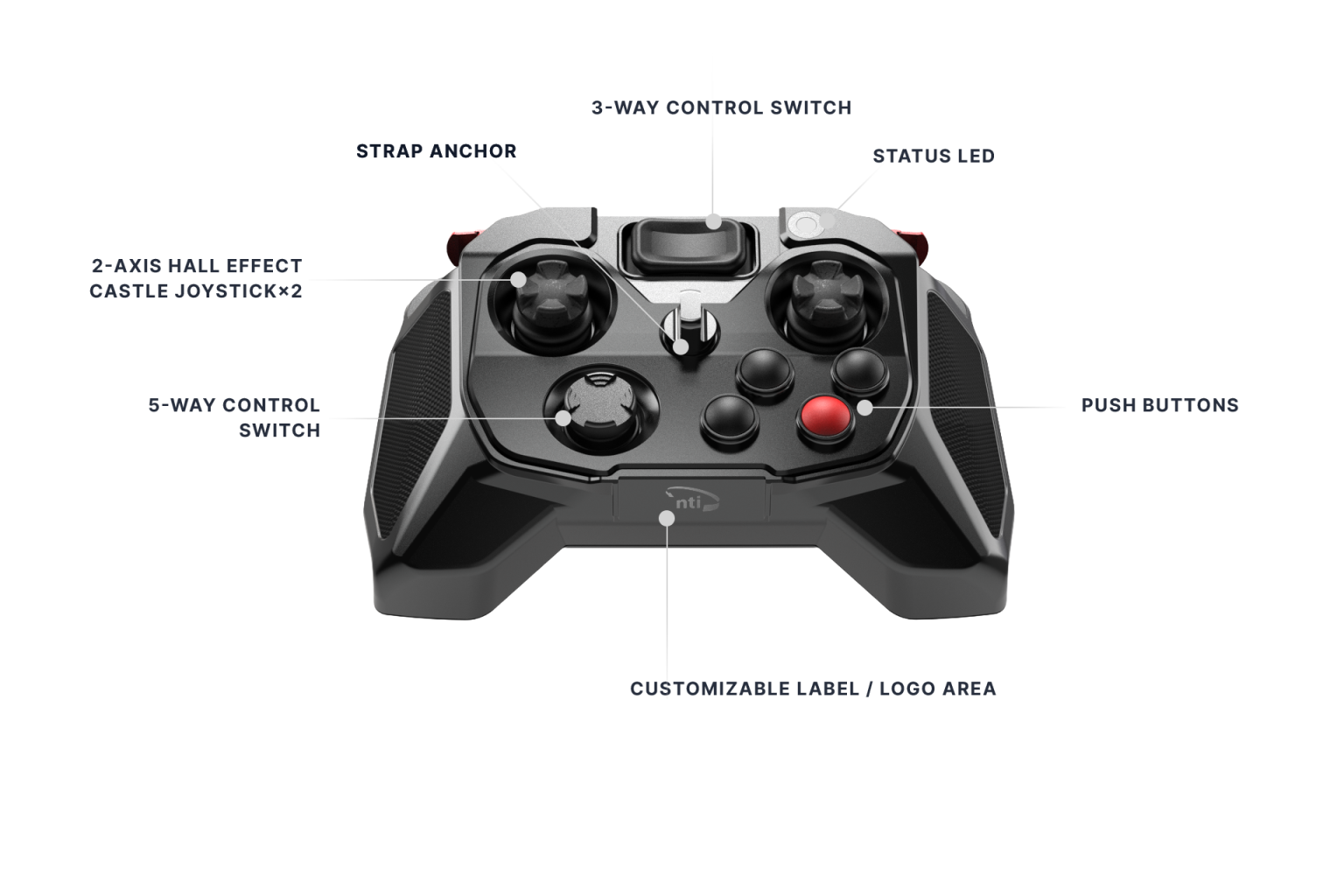

Front

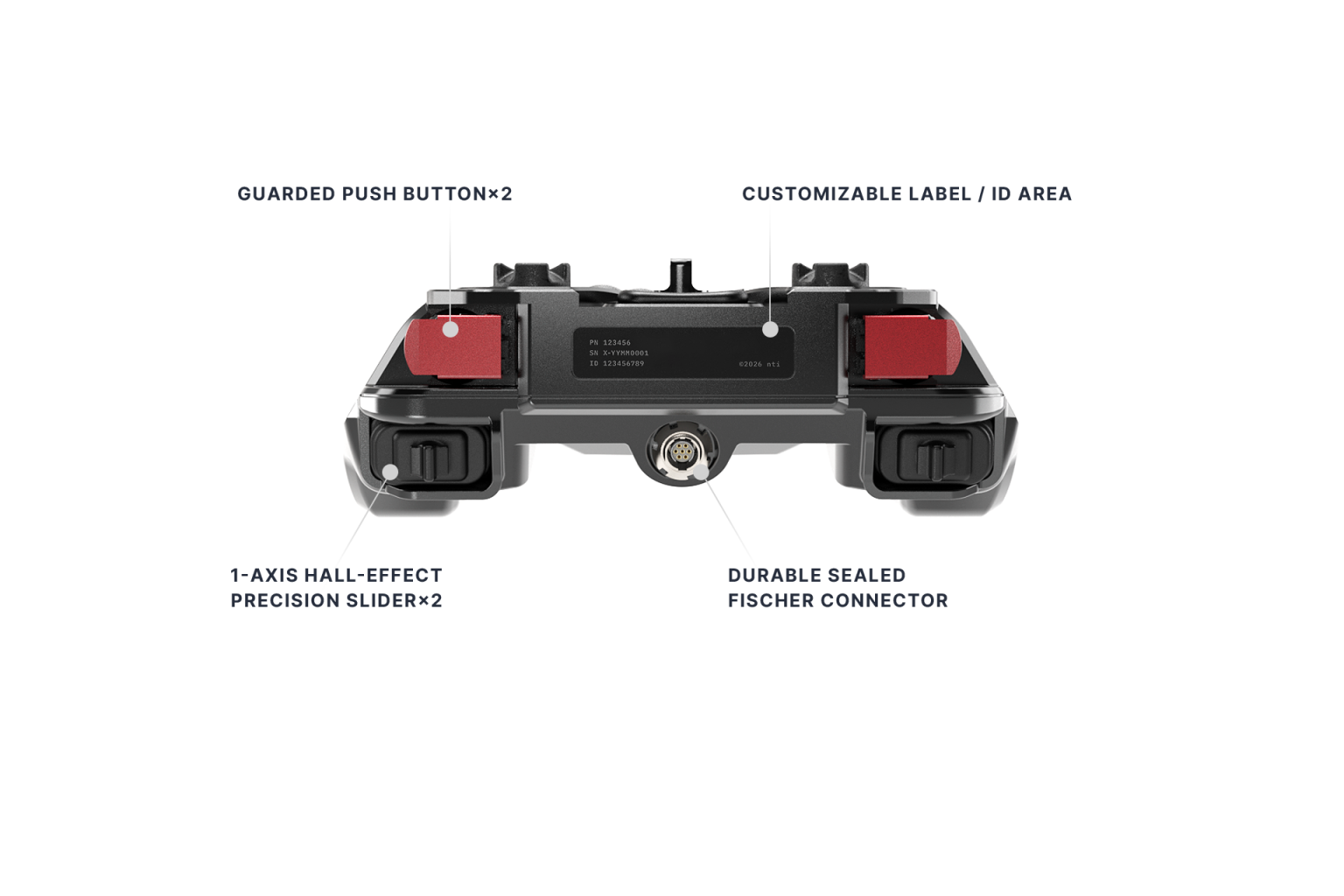

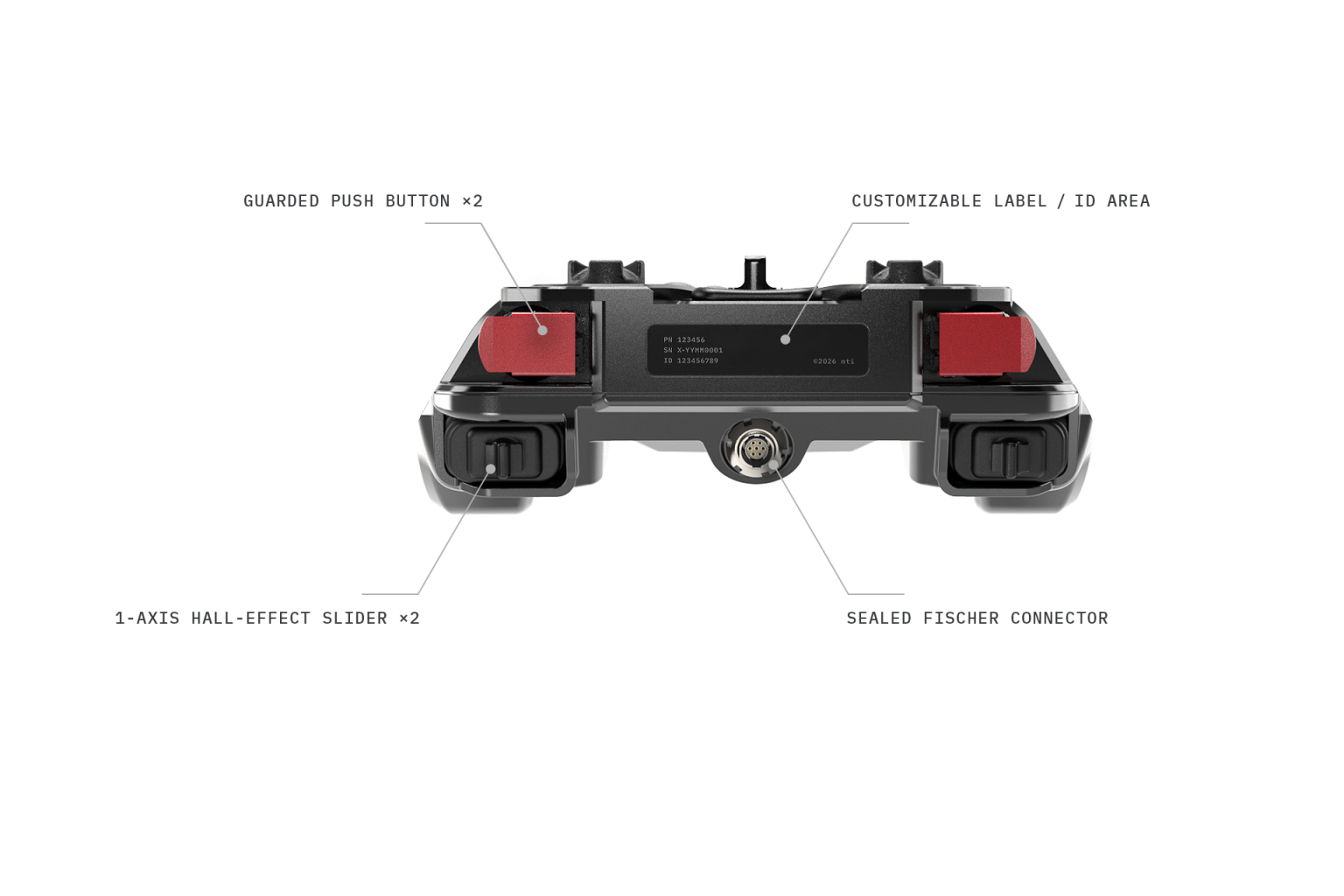

Rear

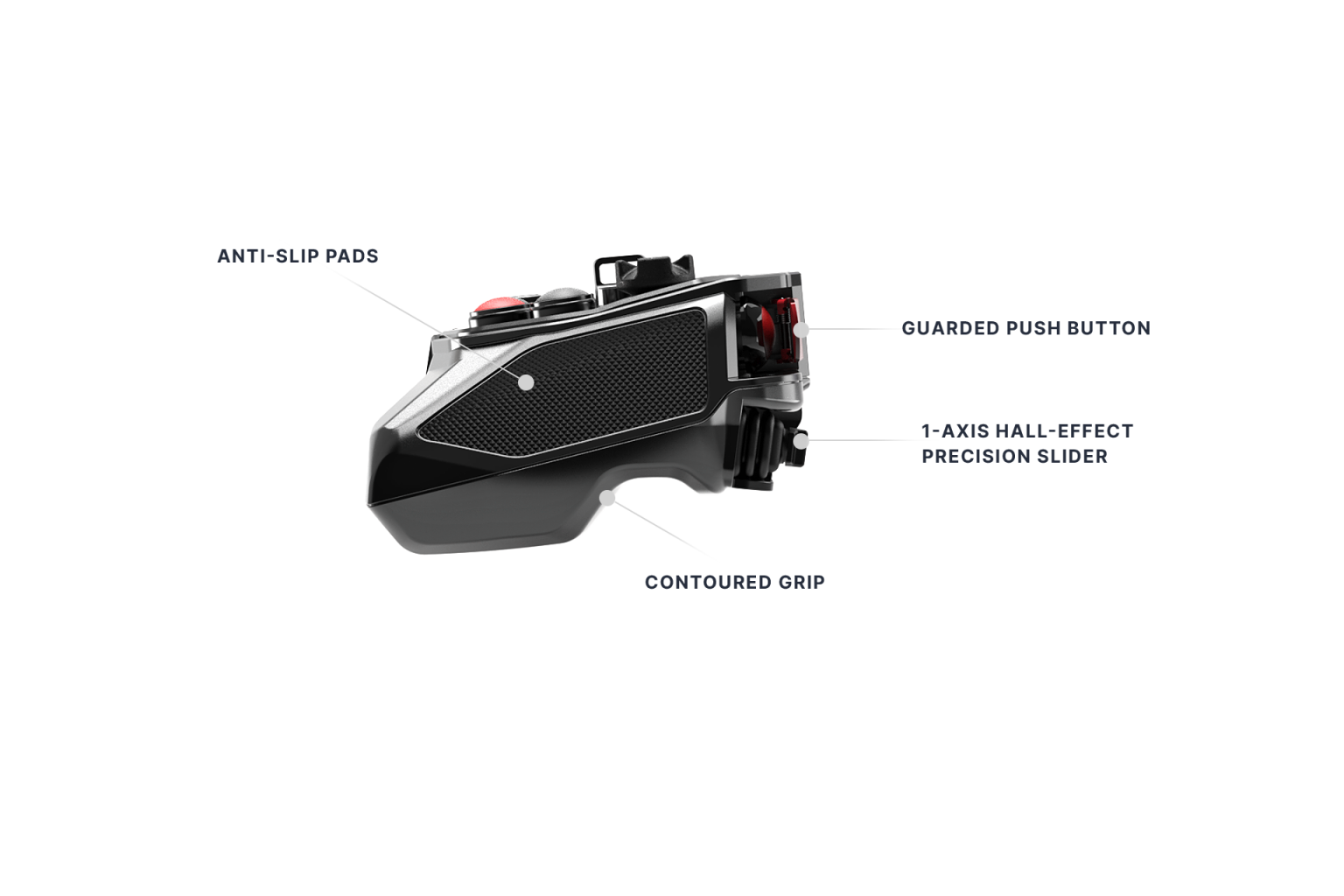

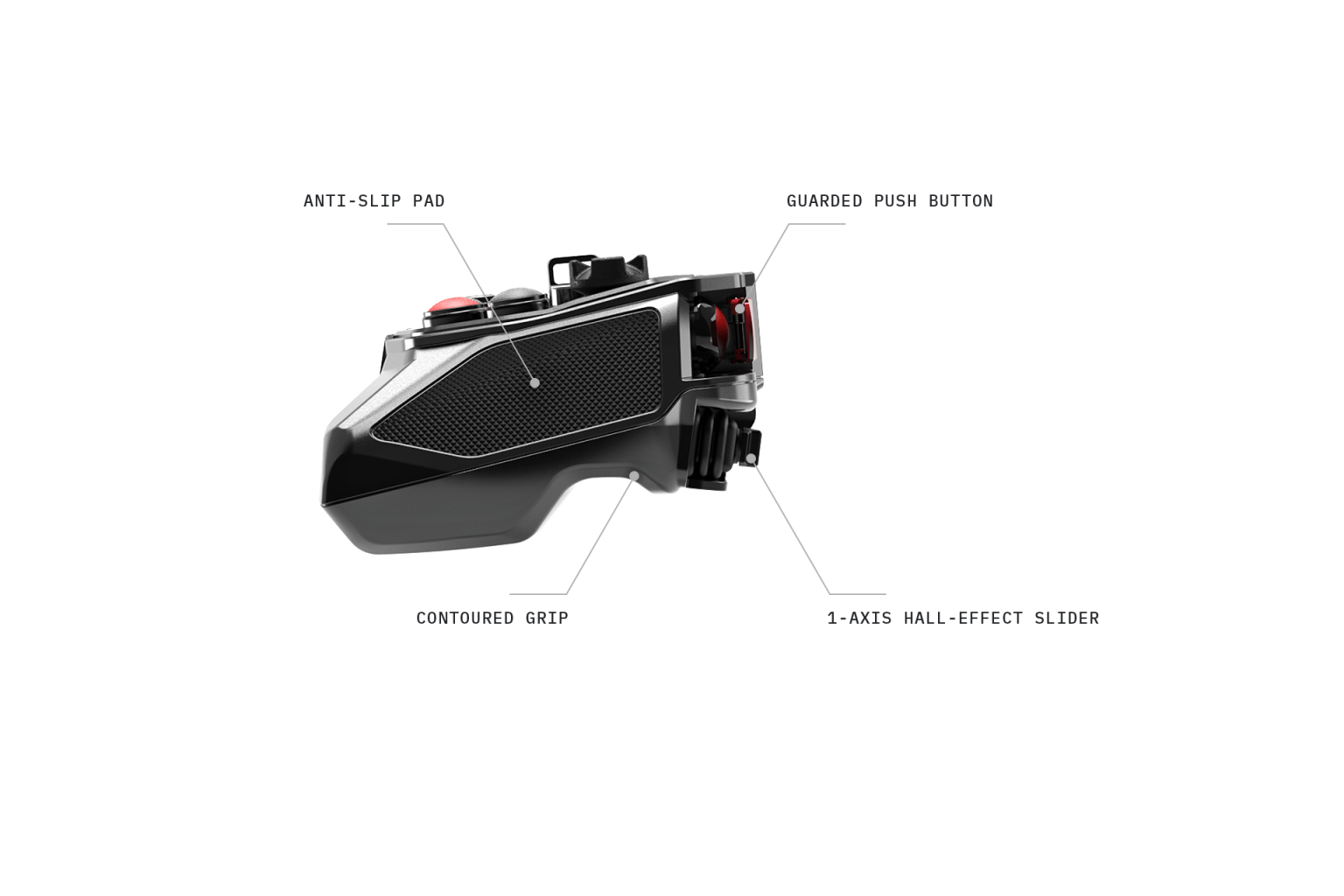

Right

Configured to Your Platform

One rugged core, configured to fit. Choose the inputs, connection, and controls that match your platform.

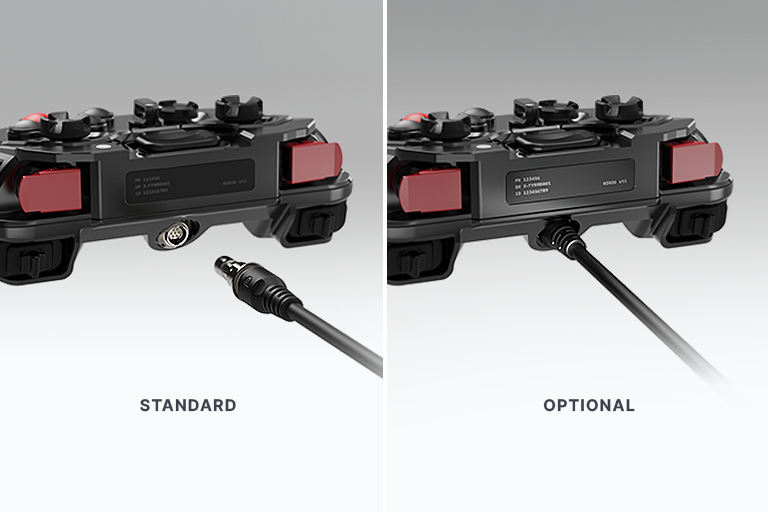

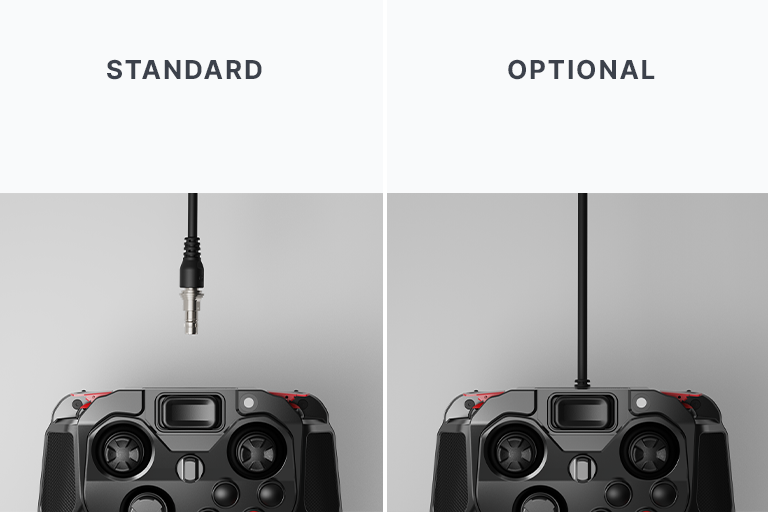

Connector

Sealed Fischer connector standard — rugged and field-serviceable. Direct fixed-exit cable optional, sized to your run.

Connector

A sealed Fischer connector is fitted as standard for a rugged, field-serviceable link. Prefer a permanent tether? Order the PD-1 with a direct fixed-exit cable instead — one less connection to seal, sized to your run.

Technical Specifications

General

Dimensions: 164 × 101 × 62 mm
Weight: ~400 g (depending on configuration)
Housing: aluminum with MIL-spec hard-anodized finish
Operating temperature: −20 °C to +60 °C
Protection rating: IP66

Control Elements

2× 2-axis Hall-effect joysticks (castle-style) — optional stick extensions on request
2× 2-axis Hall-effect thumbwheel switches
2× red guarded push buttons (with protective covers)
1× red push button; 3× black push buttons — colors customizable on request
1× 5-way navigation switch
1× 3-way control switch
LED indicator — color and function customizable

Electronics & Power

Power: USB 2.0 (5 V), wired operation only
Power consumption: up to 100 mA (USB-powered, no internal battery)
Connection interface: USB 2.0, HID device, plug-and-play
OS compatibility: Windows / Linux / macOS (no drivers required)

Connectivity & Integration

USB 2.0 wired connection only — recognized as a standard HID device
Durable sealed Fischer connector (optional direct-cable configuration)
Optional configuration utility for input mapping and calibration
Developer documentation available for integrators

Compliance

Designed to meet MIL-STD-810 (shock, vibration)
Designed to meet MIL-STD-461
IP66 rated
RoHS and REACH compliant

Warranty

2-year limited warranty standard
