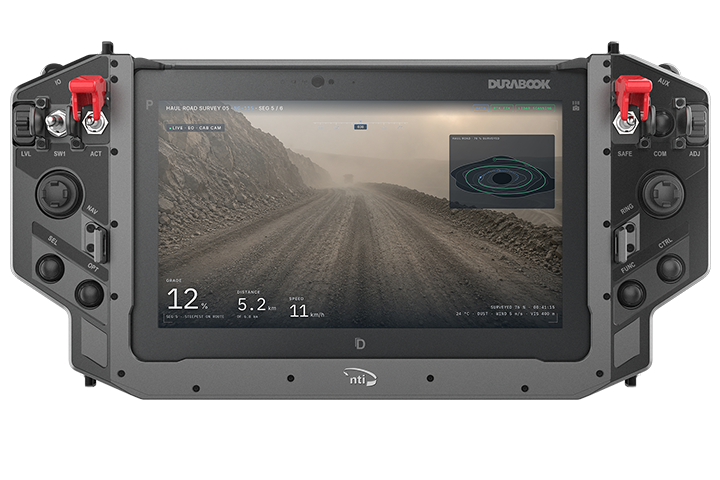

Dragonfly NR-11

Get a Quote

Overview

Built for Demanding Missions and Larger Systems

Dragonfly NR-11 is a rugged 11.6-inch ground control system designed for larger drones, robots, and complex field operations, combining an expanded operator workspace, flexible controls, and mission-ready reliability.

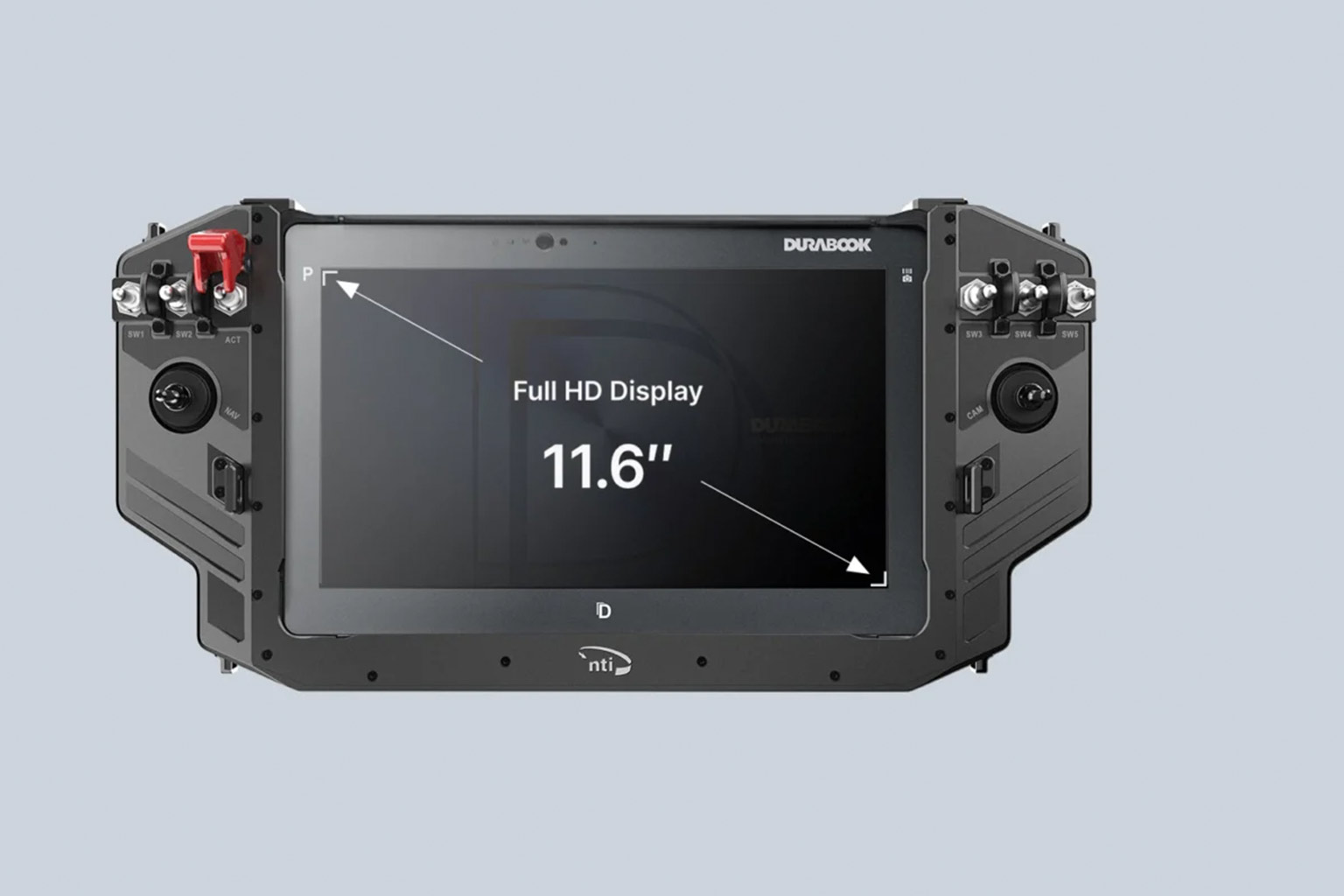

11.6" Full HD Workspace

Built on the Durabook R11 platform, the NR-11 provides a larger Full HD display for video, telemetry, mapping, and detailed mission control.

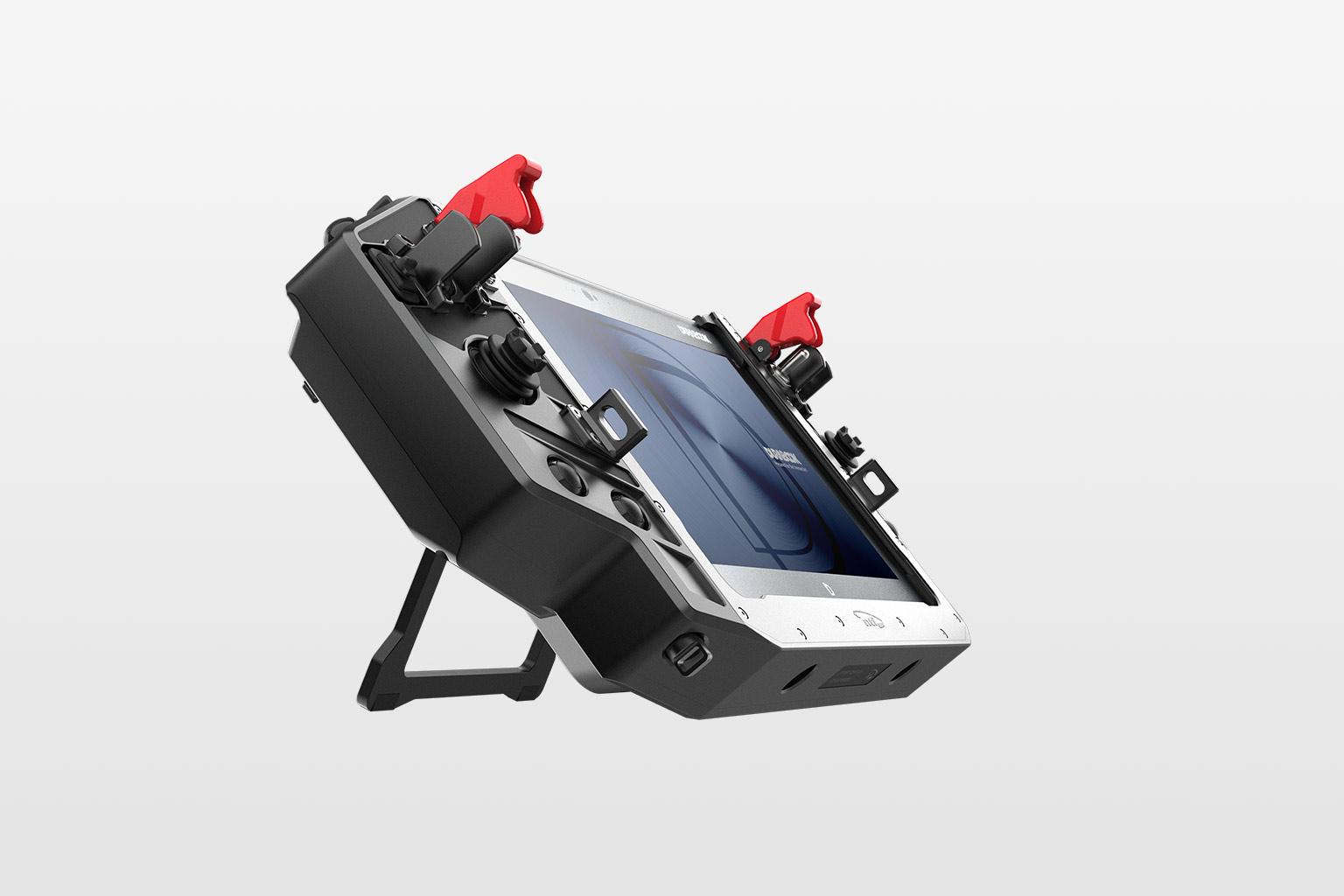

Optimized for Larger Platforms

Designed for larger drones and robotic systems, the NR-11 supports demanding operations that require greater visibility, control, and operator confidence.

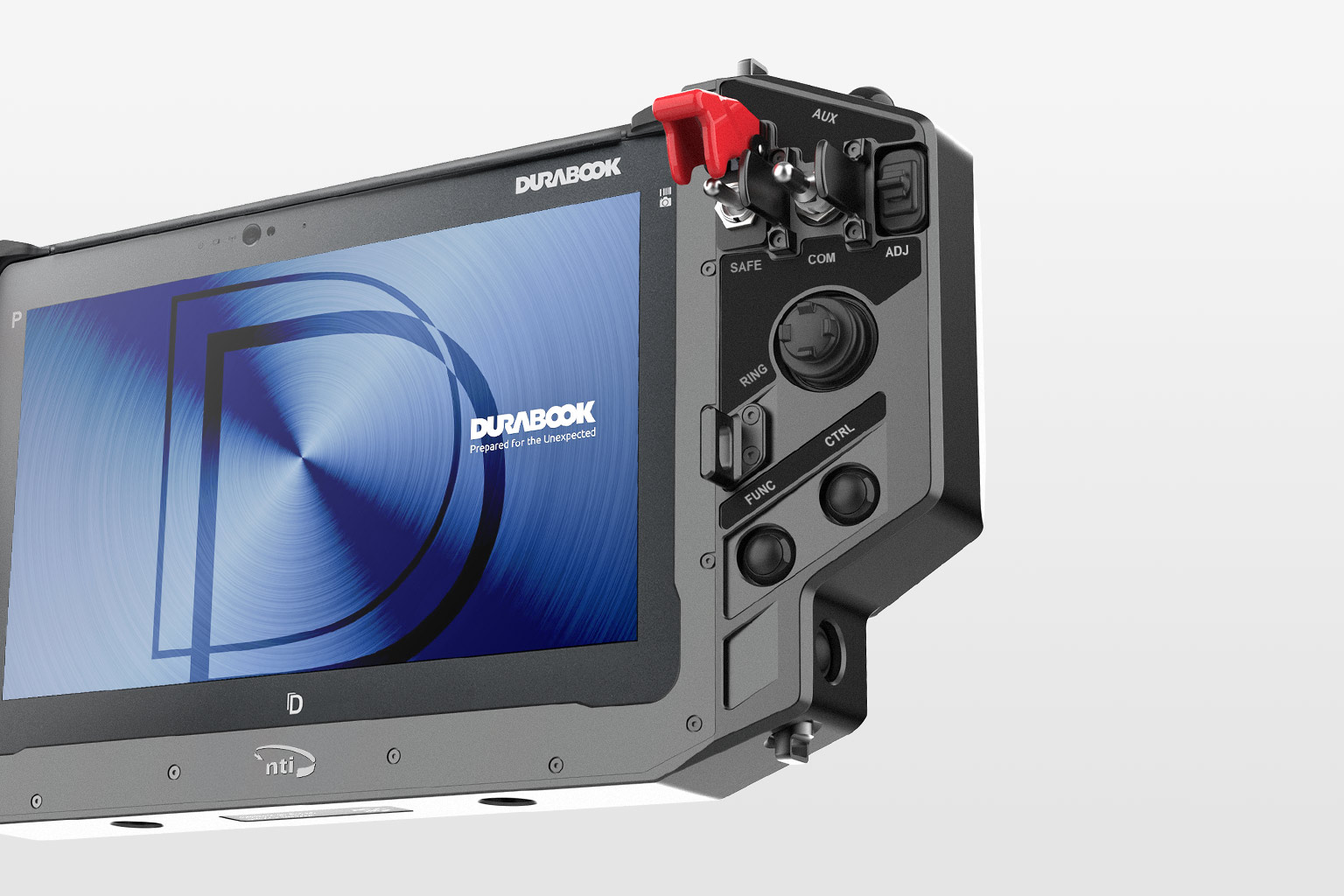

Flexible Control Configuration

Buttons, joysticks, and switches can be adapted to customer requirements, allowing the control layout to match specific mission workflows.

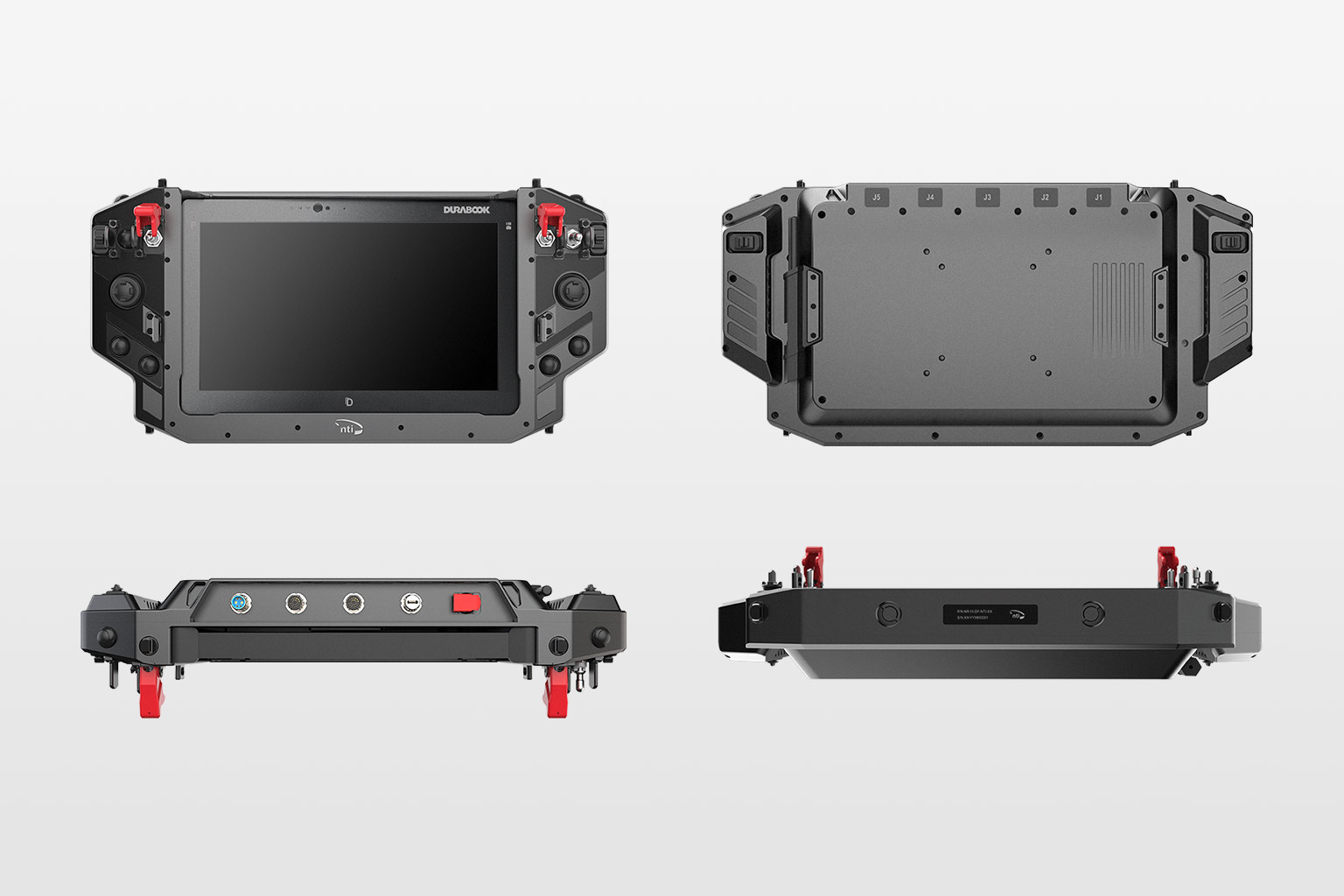

Rugged Connector Architecture

The system is equipped with robust connectors and can be configured for different interface and equipment integration requirements.

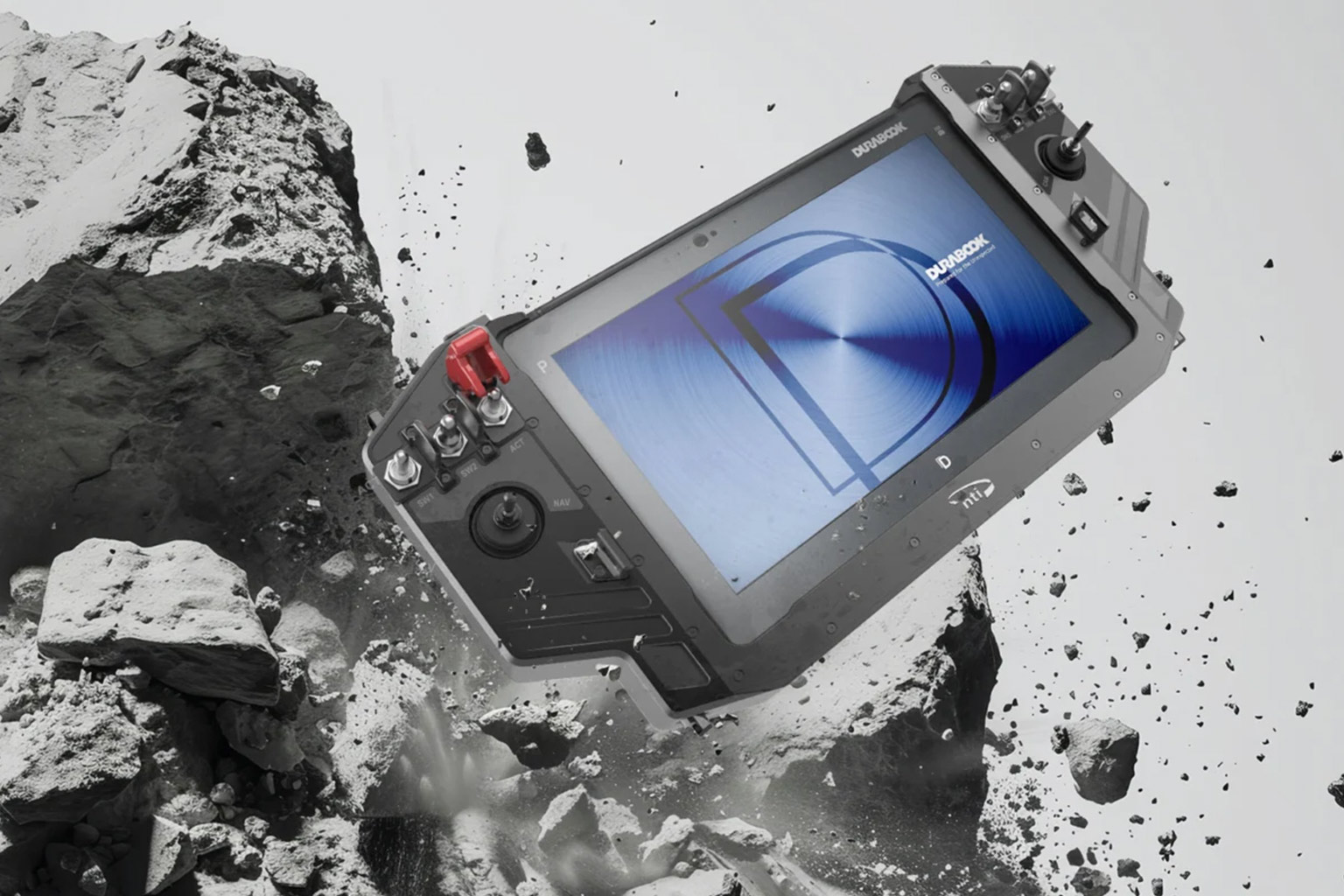

Military-Grade Reliability

Built for harsh environments, the NR-11 is described by NTI as using military-grade components and meeting MIL-STD-810H requirements for demanding field use.

Configurable Performance Platform

The NR-11 platform can be specified with different display, processor, memory, storage, connectivity, and camera options to match program needs.

Typical Applications

Designed for larger UAV, UGV, and robotic platforms that require expanded control, rugged reliability, and flexible system integration.

UAV / Aerial Systems

Operator control for multirotor, fixed-wing and VTOL platforms.

UGV & Robotics

Ground robots, autonomous vehicles and industrial robotic systems.

USV / Marine Platforms

Surface and marine-based autonomous systems.

Front

asdasdasdasd

asdasdsad

asdsadsa

Specifications

MIL-STD-810H certified

Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, 4′ drop 26 faces

MIL-STD-461G certified

Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility

IP 66 certified

Optional ANSI/UL 121201, Class I, Division 2

Controllers

2 Axis Hall Effect Joystick x 2
1 Axis Thumbwheel Hall Effect Switch x 2
Toggle Switches x 6 (configurable number of positions)
Optional: 1 or 2 Toggle Guards
Optional: Push Button with Protective Cover
Optional: Additional 2 Axis Hall Effect Joystick

Interface Specifications

LAN 10/100 x2
USB 2.0 x 2
HDMI
USB 3.2 TYPE – C

Additional interfaces available upon request

Connectivity Specifications

BERNIER harsh environments connectors

J1 – Power input
J2 – Ethernet
J3 – USB
J4 – HDMI
J5 – TYPE-C

Additional connectors available

Operating voltage

19V (DC)

Optional: Built-in DC/DC Converter with customizable input voltage

Integrated Rugged Tablet

Durabook R11 Rugged Tablet
(upon customer’s spec)

Dimension & Weight

452 mm (L) x 220 mm (W) x 104 mm (H) 3.2 kg (with a tablet)

(Dimensions and weight may vary depending on configuration)

Warranty

2-year limited warranty standard
